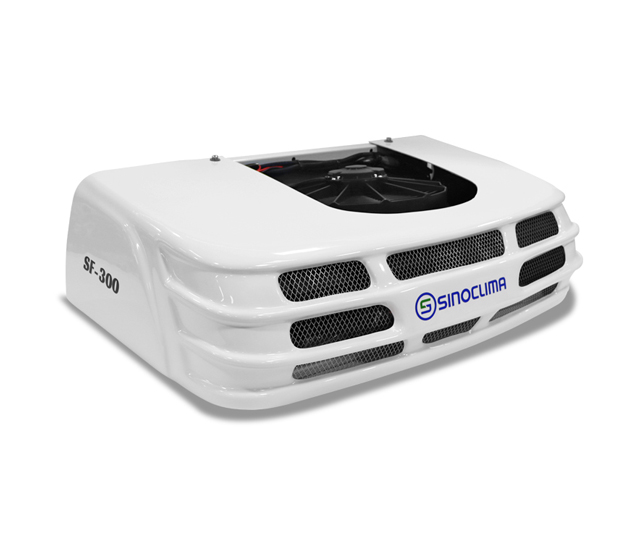

| Model | SF-300 | |
Cooling Capacity |
Temperature | Watts |
| 0℃ | 2950W | |
| -20℃ | 1600W | |
| Type | Split unit vehicle engine driven type | |
| Refrigerant & Qty | R404A,0.9kg±5% | |
| Box Inside Temp | -25℃ ~ +15℃ | |
| Defrosting type | Hot gas defrost(Auto/Manual) | |
| Condenser | Type | Parallel Flow Condenser |
| Fan Quantity | 1Pc | |
| Fan Type | Axial type | |
| Air Flow Volume | 1600 m³/h | |
| Dimensions | 870*450*220mm | |
| Weight | 27Kg | |
| Evaporator | Type | Inner Grooved Copper Tube and Fin |
| Fan Quantity | 1Pc | |
| Fan Type | Axial type | |
| Air Flow Volume | 1600 m³/h | |
| Dimensions | 1010*600*180mm | |
| Weight | 19Kg | |
| Compressor | Model | GY-5S14 |
| Type | Swash plate type | |
| Displacement | 138cc/r | |
| Refrigerated Oil | RL-68H | |
| Applicable Box Volume | 10~15m³ | |
| Optional function | Heating and Electric standby | |
