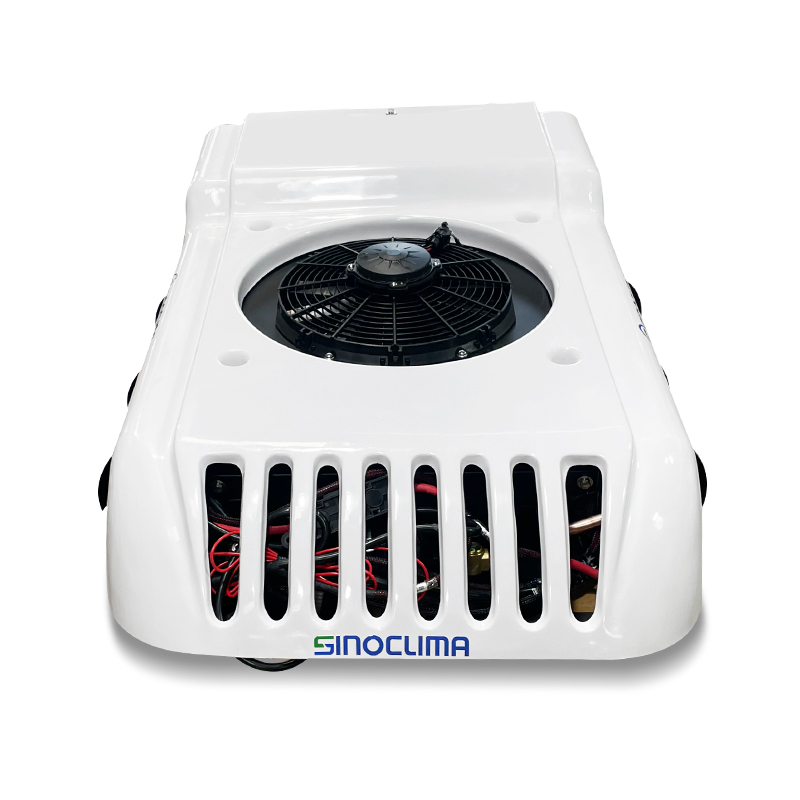

SINOCLIMA EV-260T Full Electric Truck Van Refrigeration Unit

EV-260T

Type: Full Electric Truck Van Refrigeration Unit

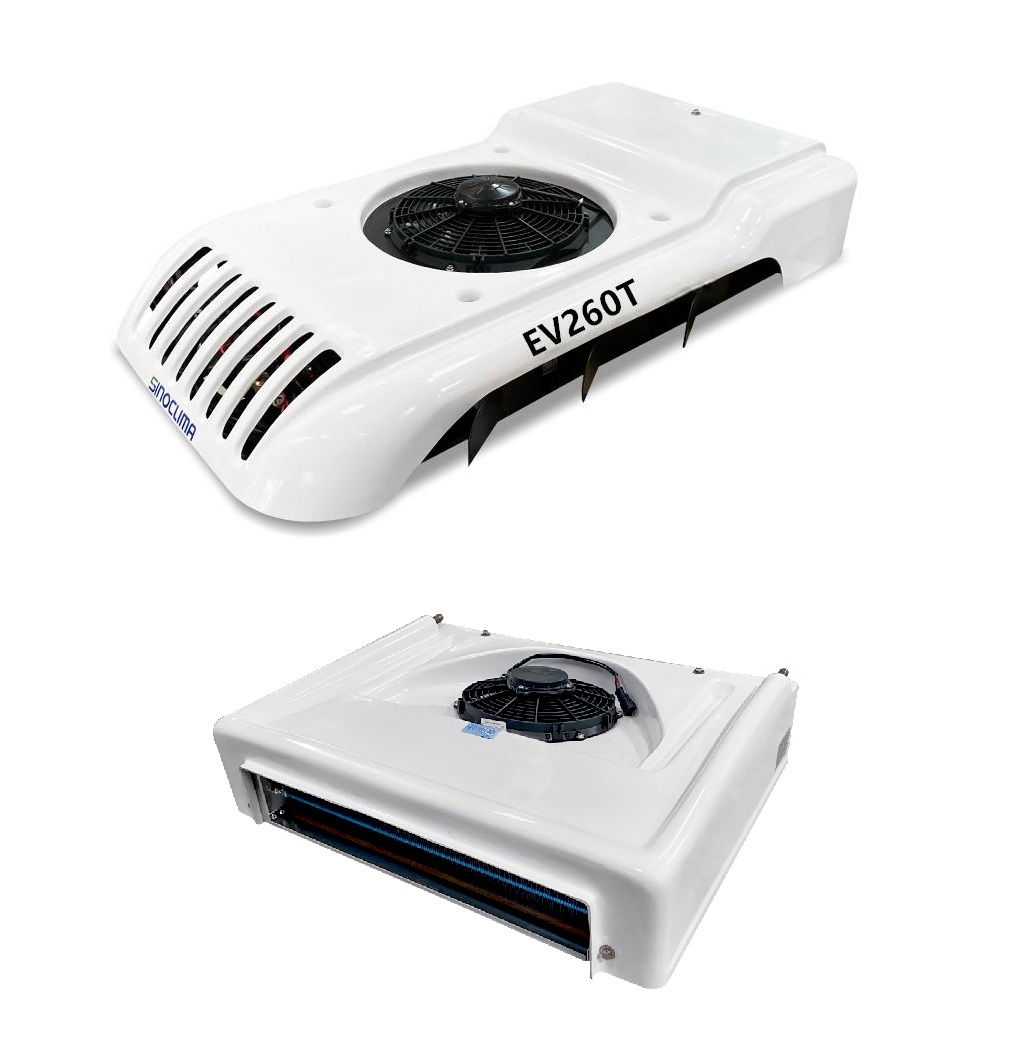

Structure: Condenser Assembly + Evaporator Assembly + In-cab Control Box

Voltage: Control Voltage DC220V-DC450V

Refrigerant: R404A, 1.2kg ±5%

Compressor: Model GY27, Displacement 27ml/r, Lubricating oil POE RL68H

Controller: In-cab control box

Share With:

Introduction

Product Introduction

High efficiency:
Reliable and low failure rate.
World-class key components for the manufacture of refrigeration systems.
10 years experience in R&D, manufacturing and sales. We have a large number of parts in stock to guarantee after-sales demand.Reliable and low failure rate.
World-class key components for the manufacture of refrigeration systems.
10 years experience in R&D, manufacturing and sales. We have a large number of parts in stock to guarantee after-sales demand.
Safe and reliable:
Stable cooling performance.
EV-260T refrigeration units are built to provide fast, stable, temperature-controlled performance to meet your needs.
Wide application:
Including but not limited to food & beverage trucks at parks, campsites, fairs, parties, resorts, family reunions, weddings, fruit and vegetable preservation, fish and seafood storage, etc.

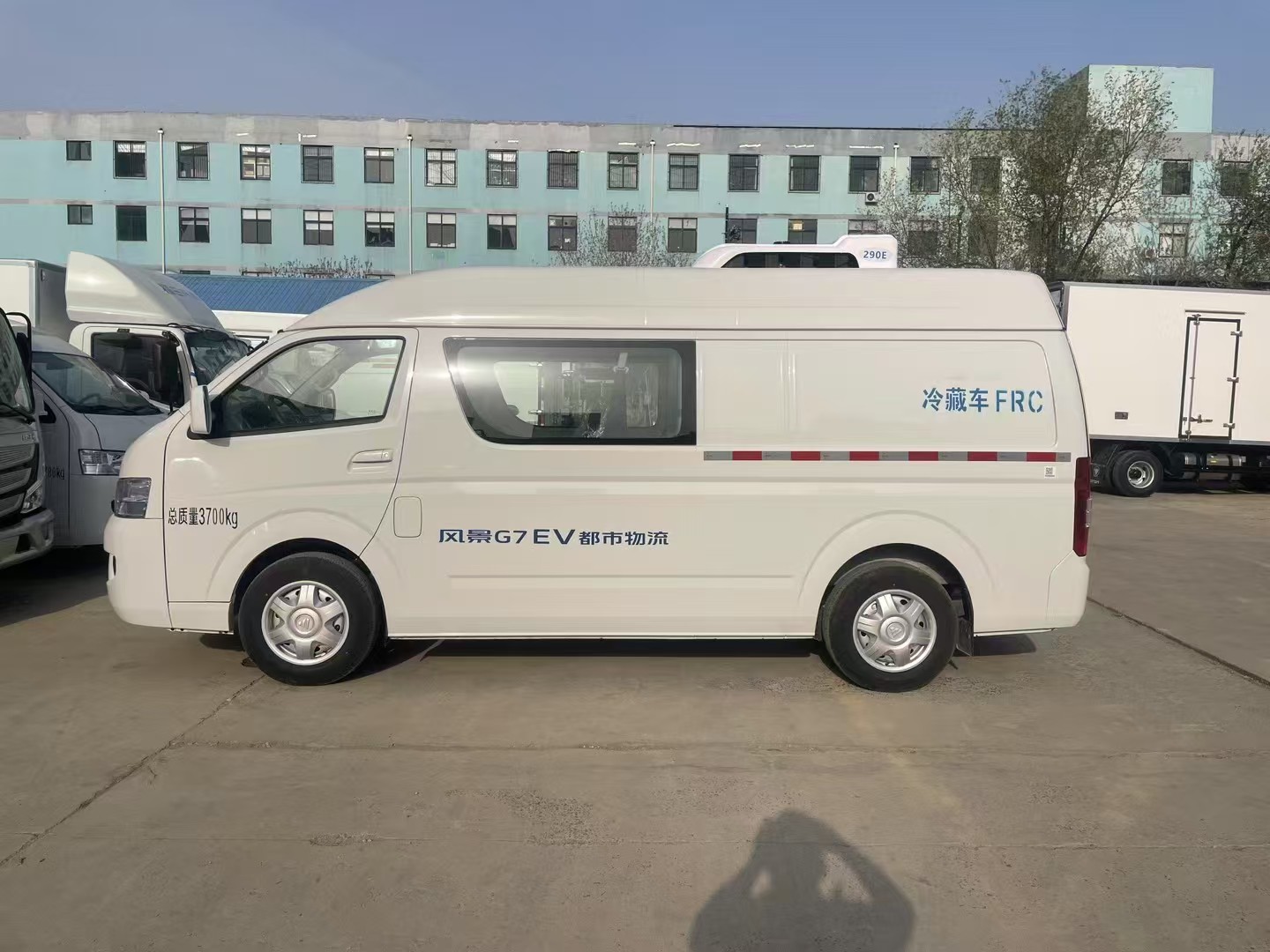

Features

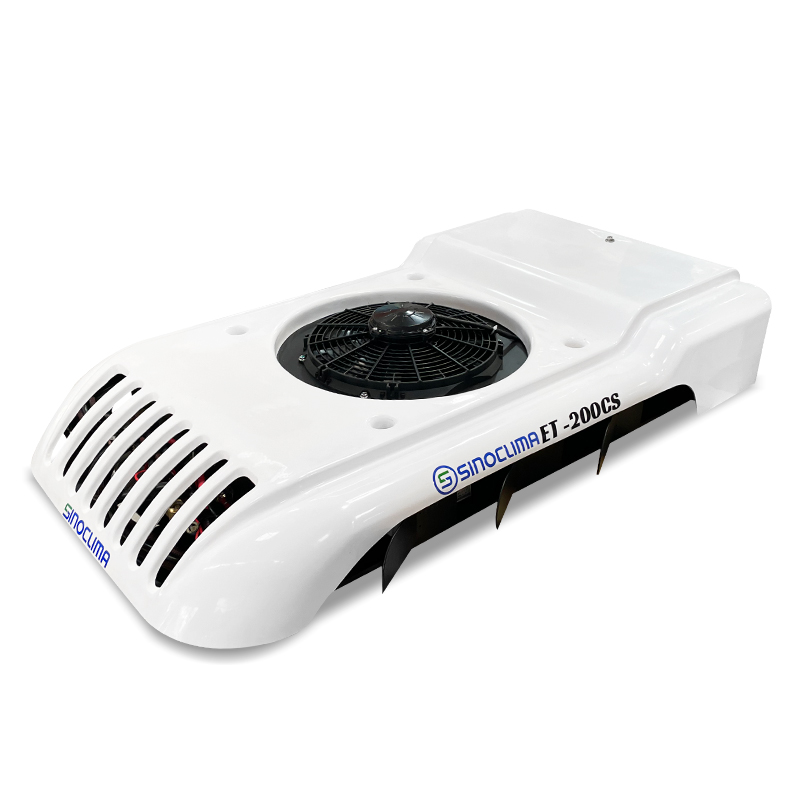

Condenser assembly

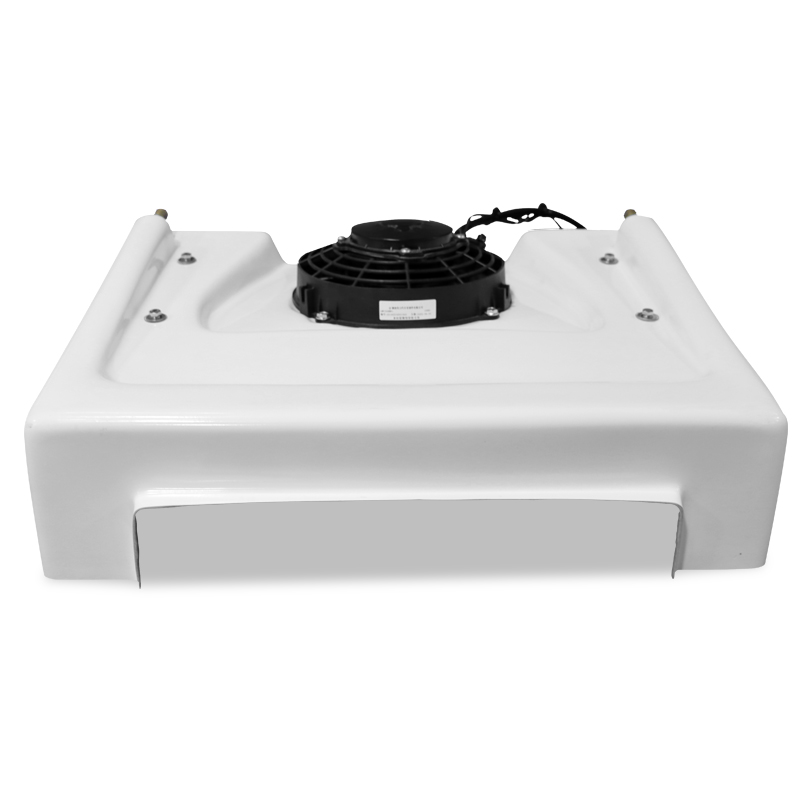

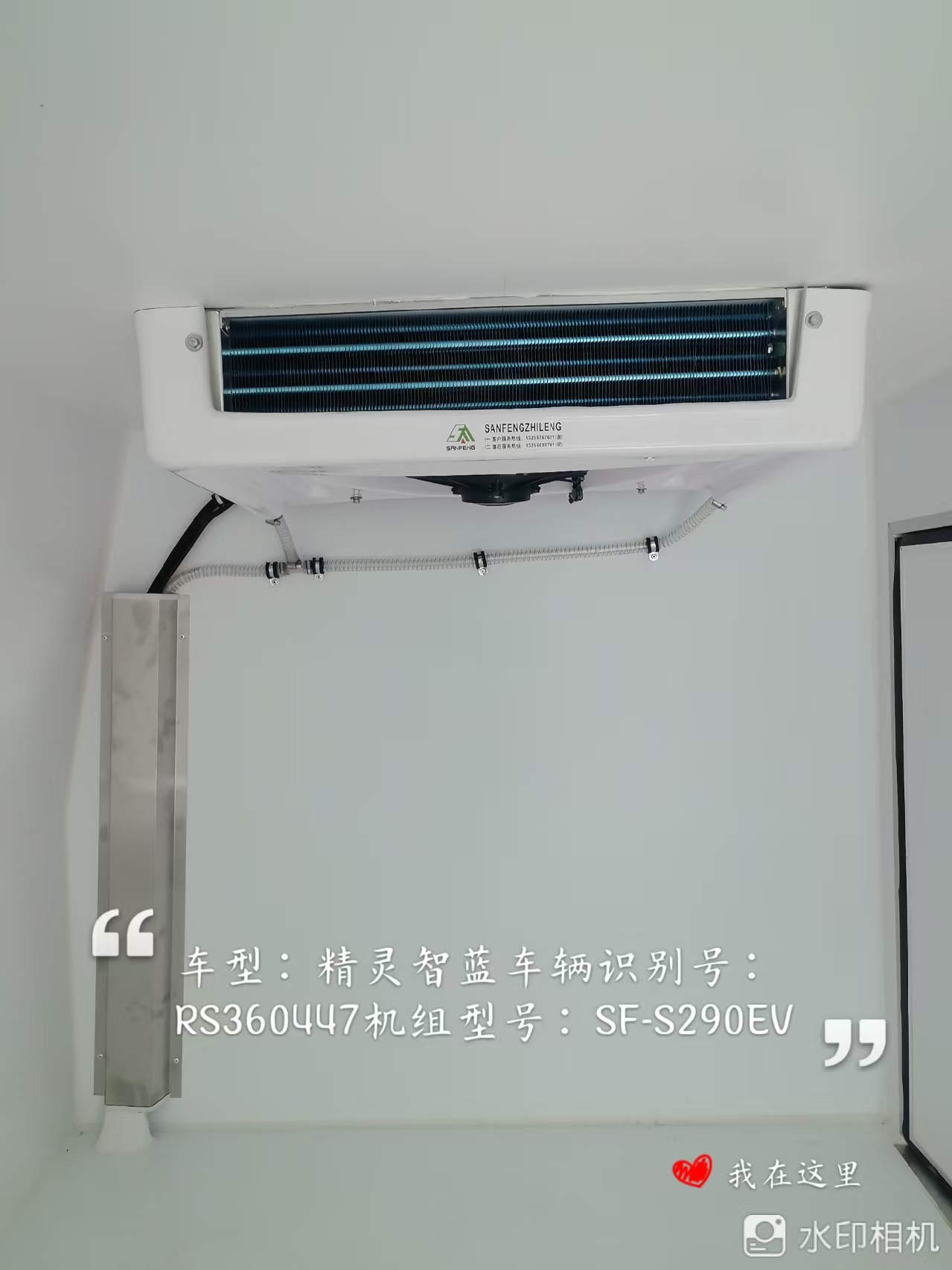

Evaporator assembly

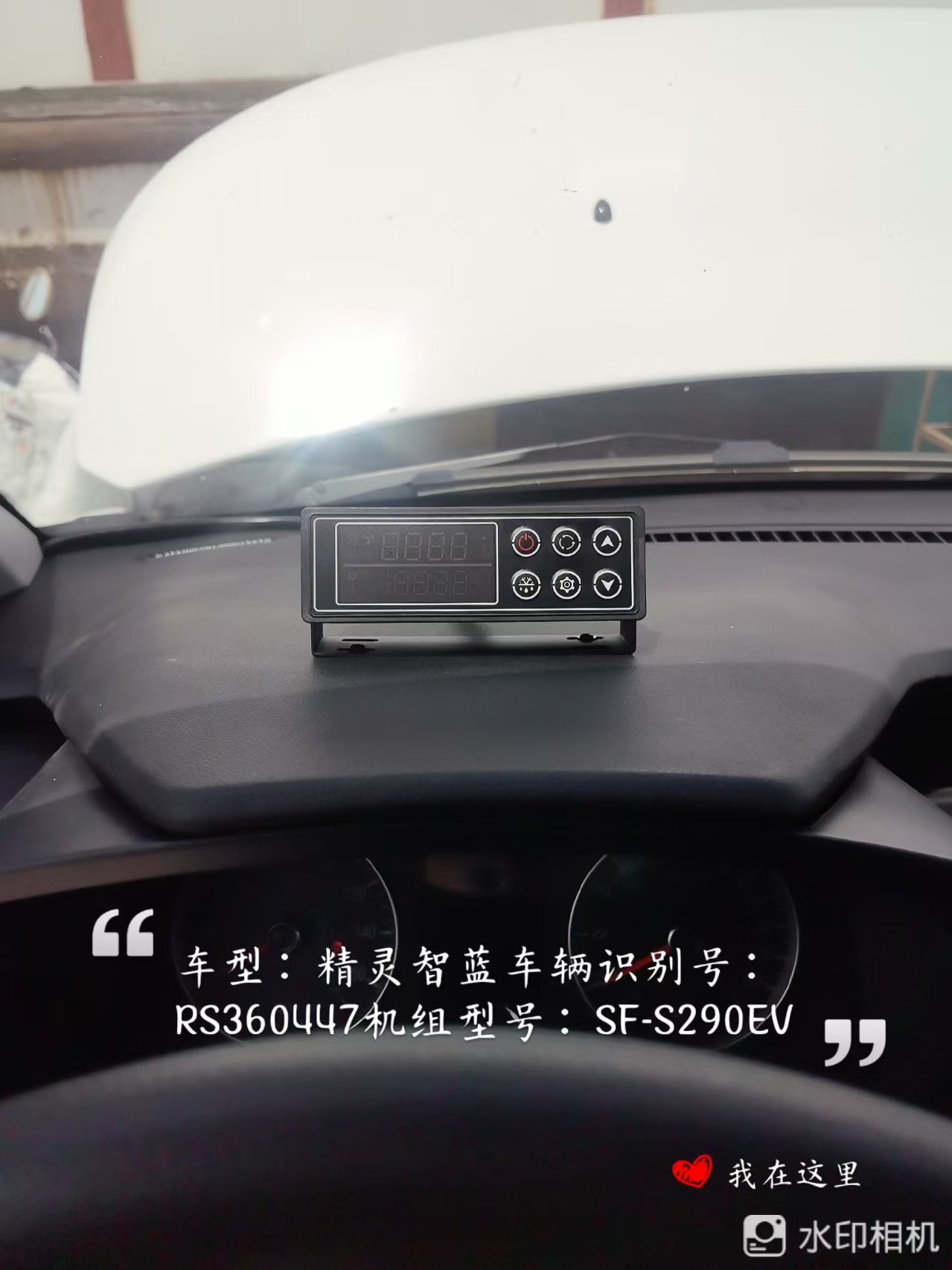

In-cab control box and wiring harness

Optional heating function: (Hot gas heating system)

Specification

Model	EV-260T
Cooling Capacity	3950W @ 0℃/+30℃
Cooling Capacity	2050W @ -18℃/+30℃
Control Voltage	DC220V-DC450V
Defrosting	Hot gas defrost(Auto./Manual)
Temperature Range	-20℃ ~ +15℃
Refrigerant & Volume	R404A, 1.2kg±5%
Airflow Volume	900m³/h
Compressor	Model: GY27
	Displacement: 27ml/r
	Lubricating oil: POE RL68H
Condenser	Type: Parallel Flow Condenser
	Qty of Fans: 1Pc
	Dimensions: 1160×660×200 mm
	Weight: 43Kg
Evaporator	Type: Inner Grooved Copper Tube and Fin
	Qty of Fans: 1Pc
	Dimensions: 790×585×190 mm
	Weight: 13Kg
Recommended Box Volume	8m³ (-18℃)

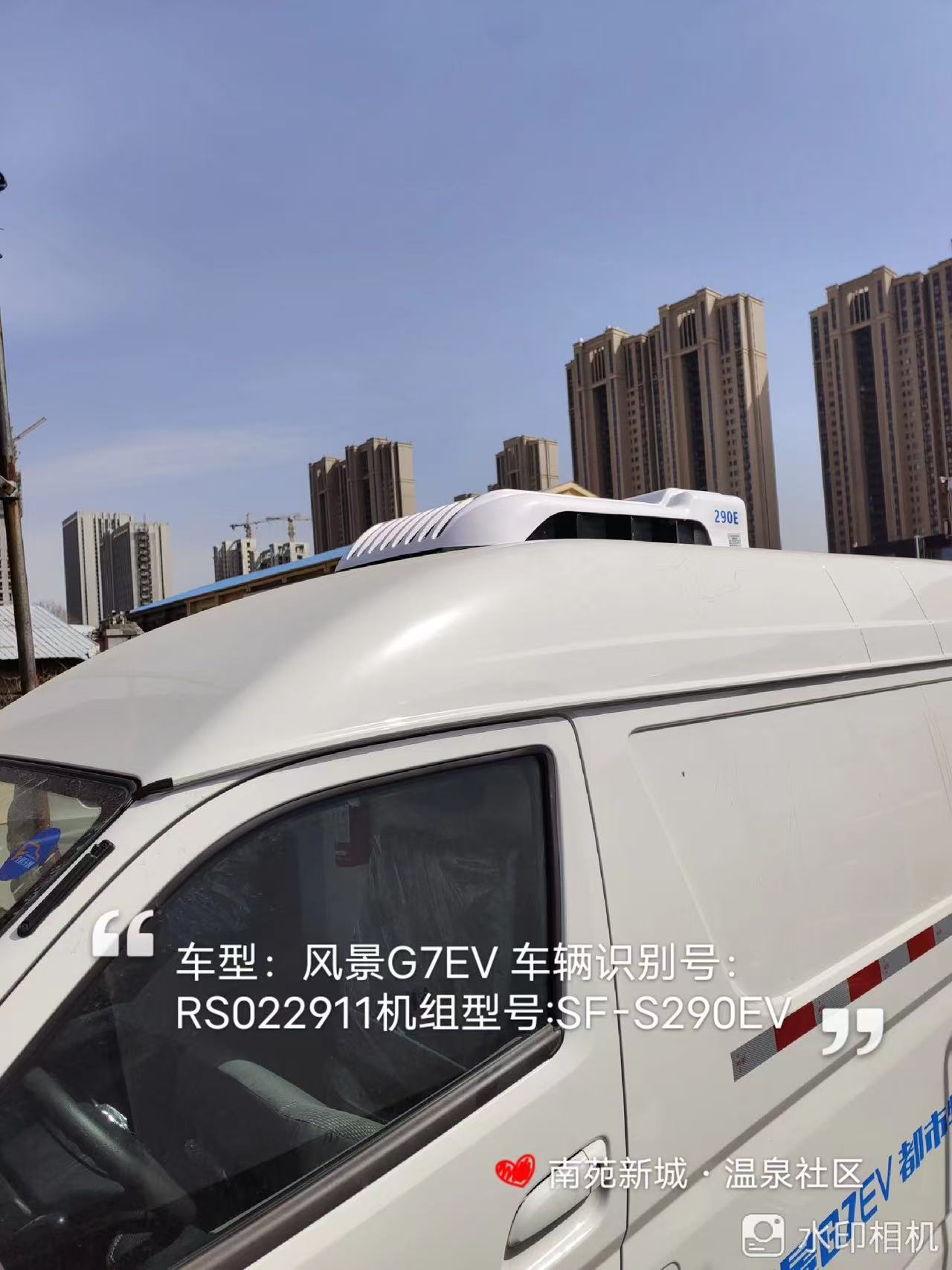

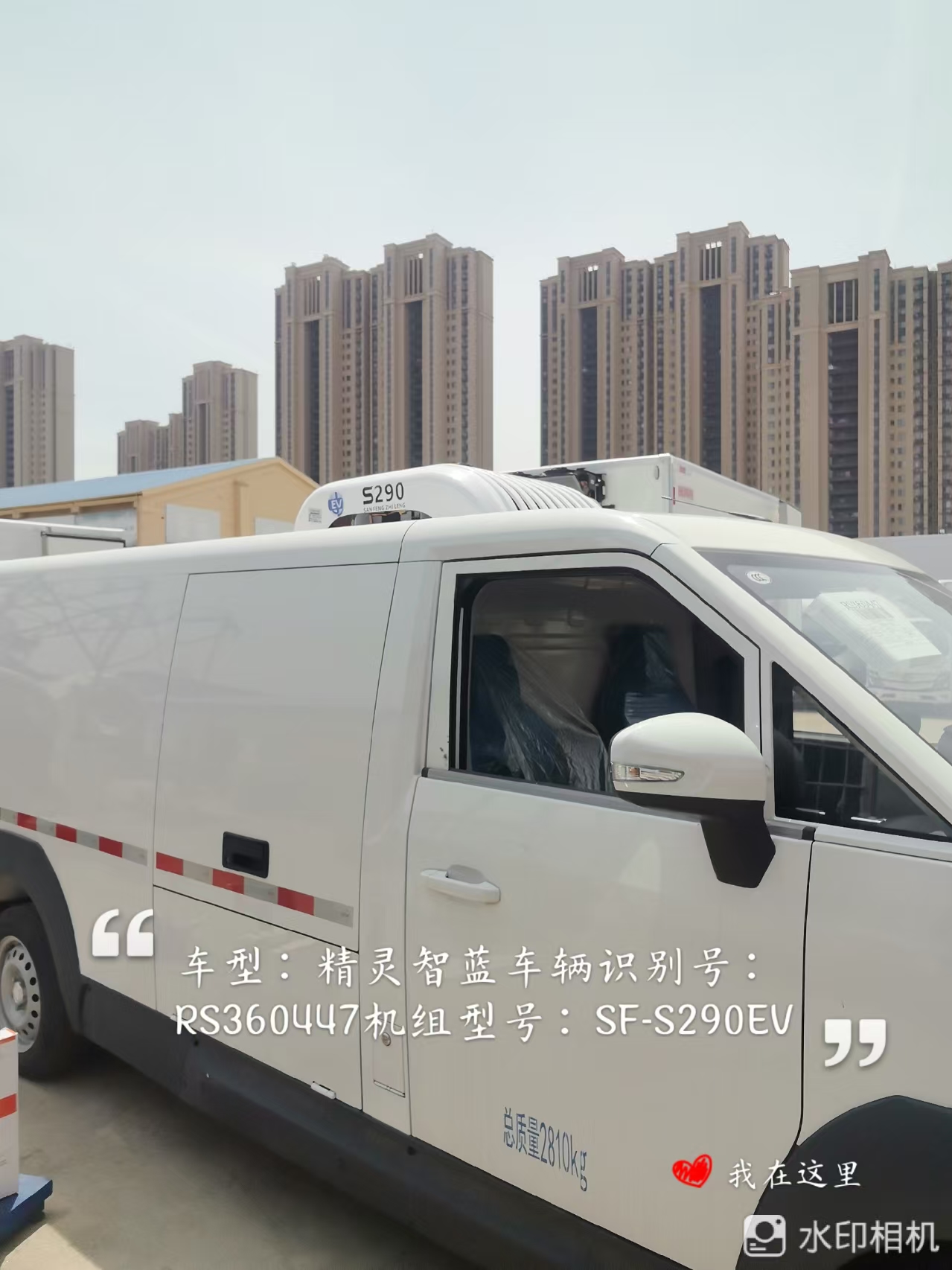

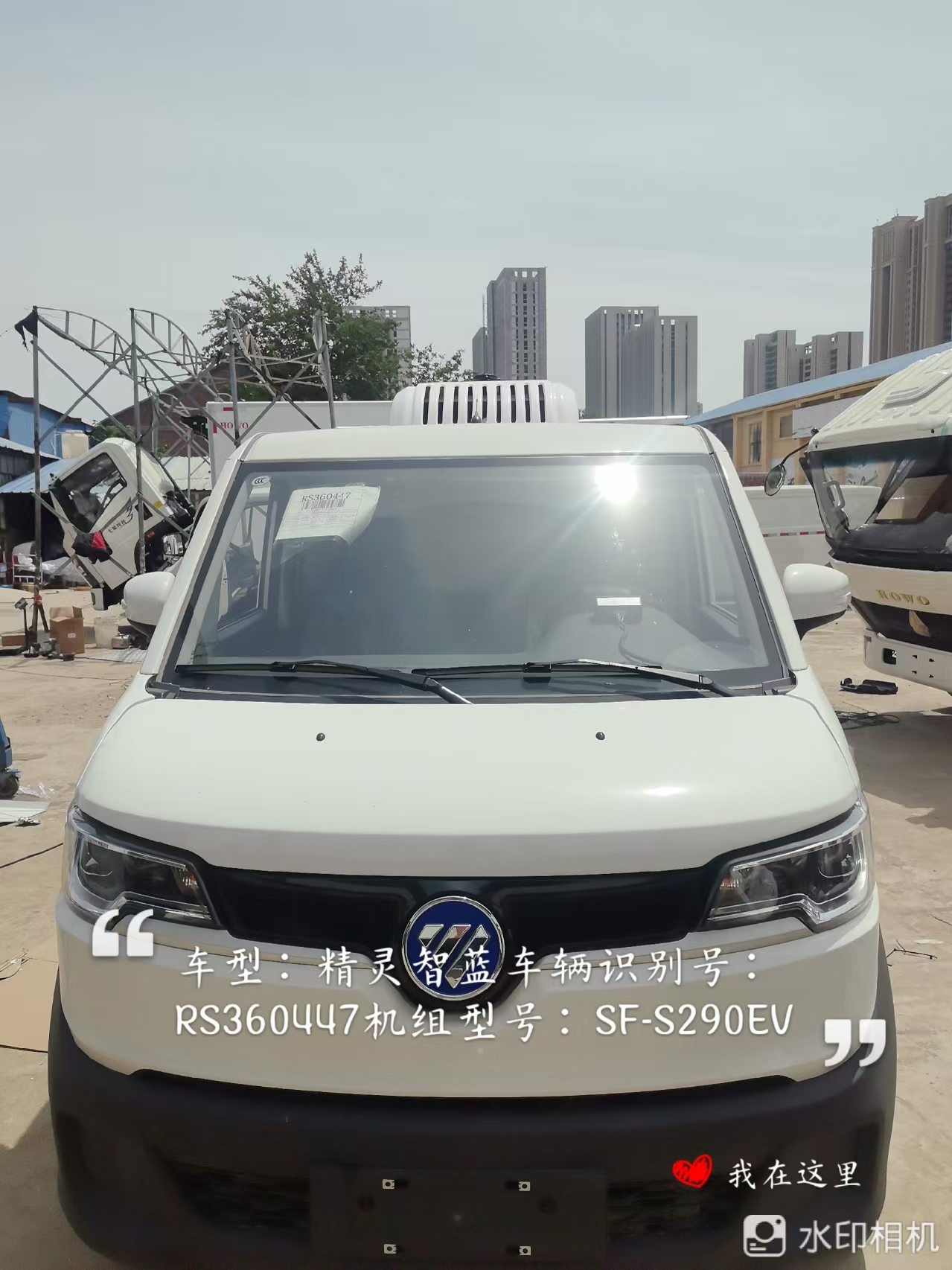

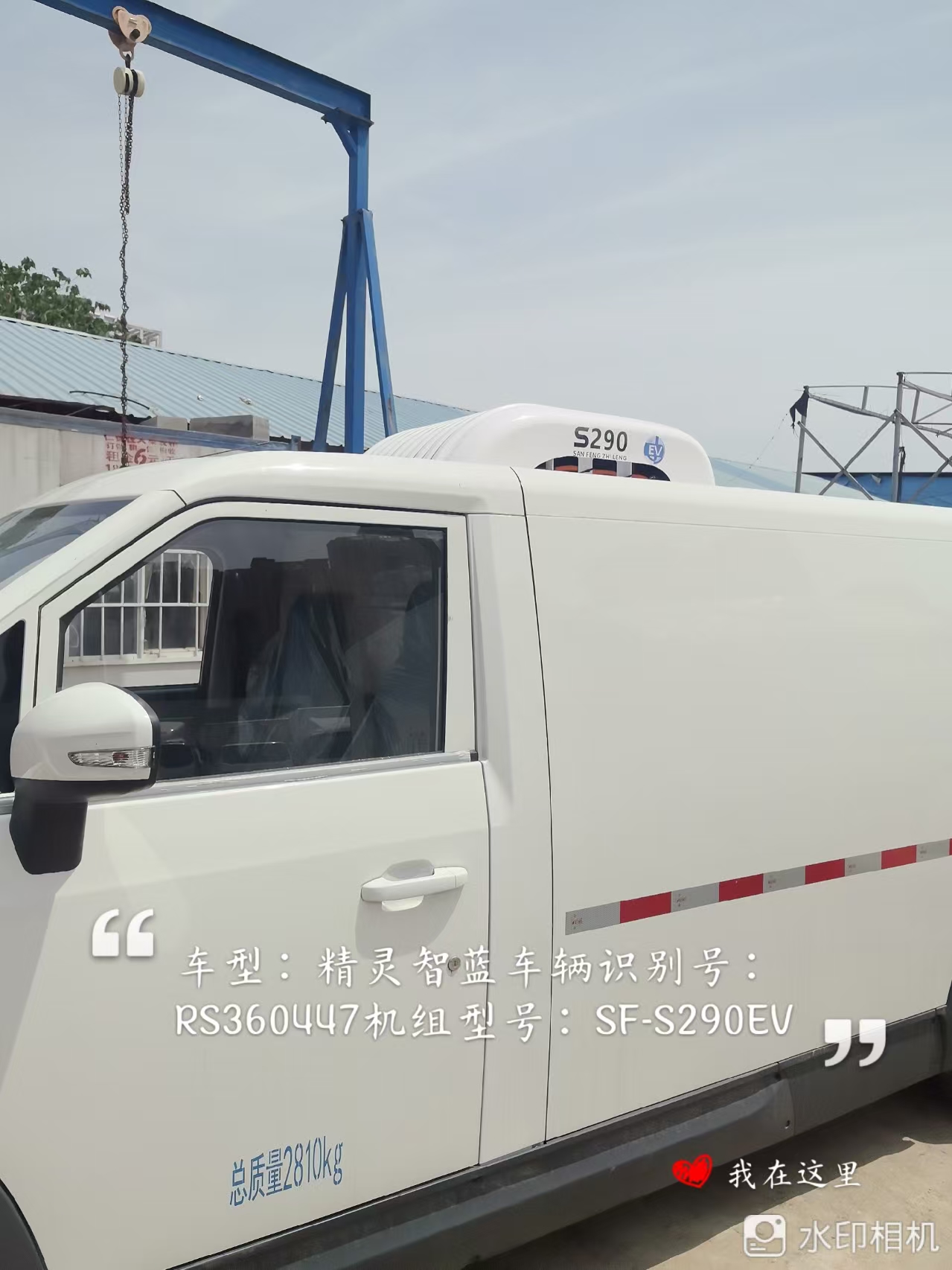

Application
