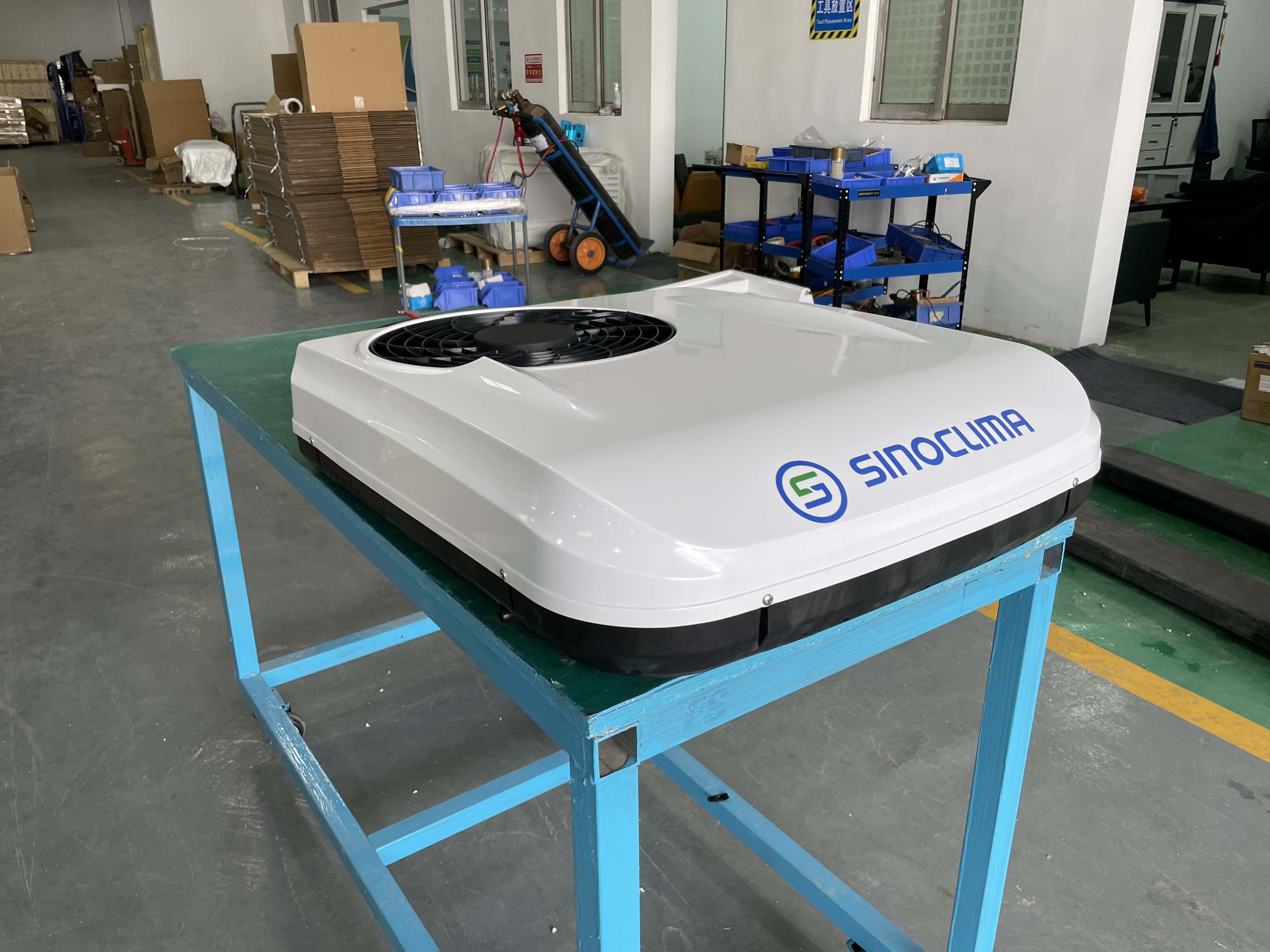

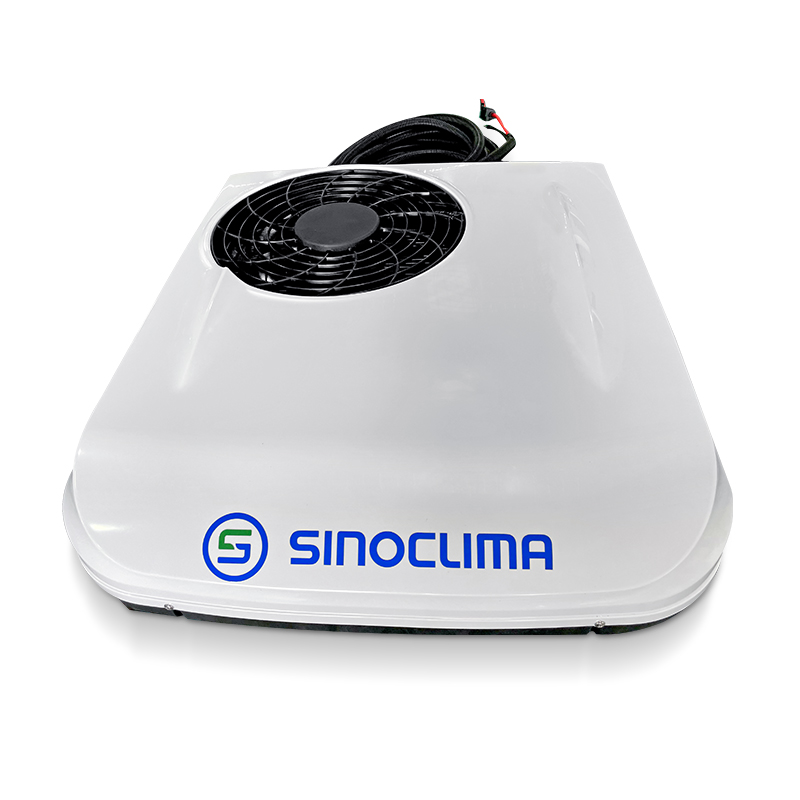

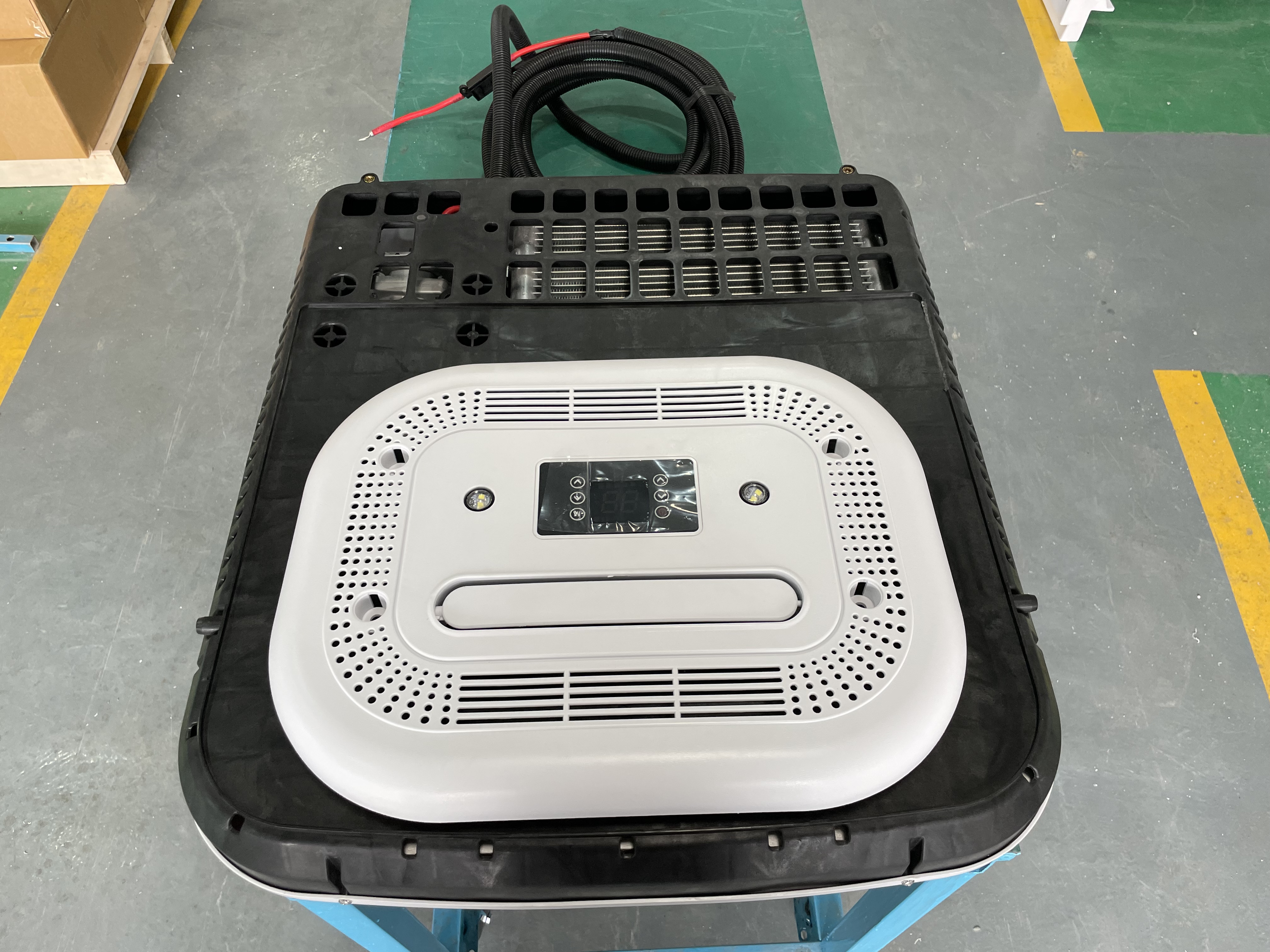

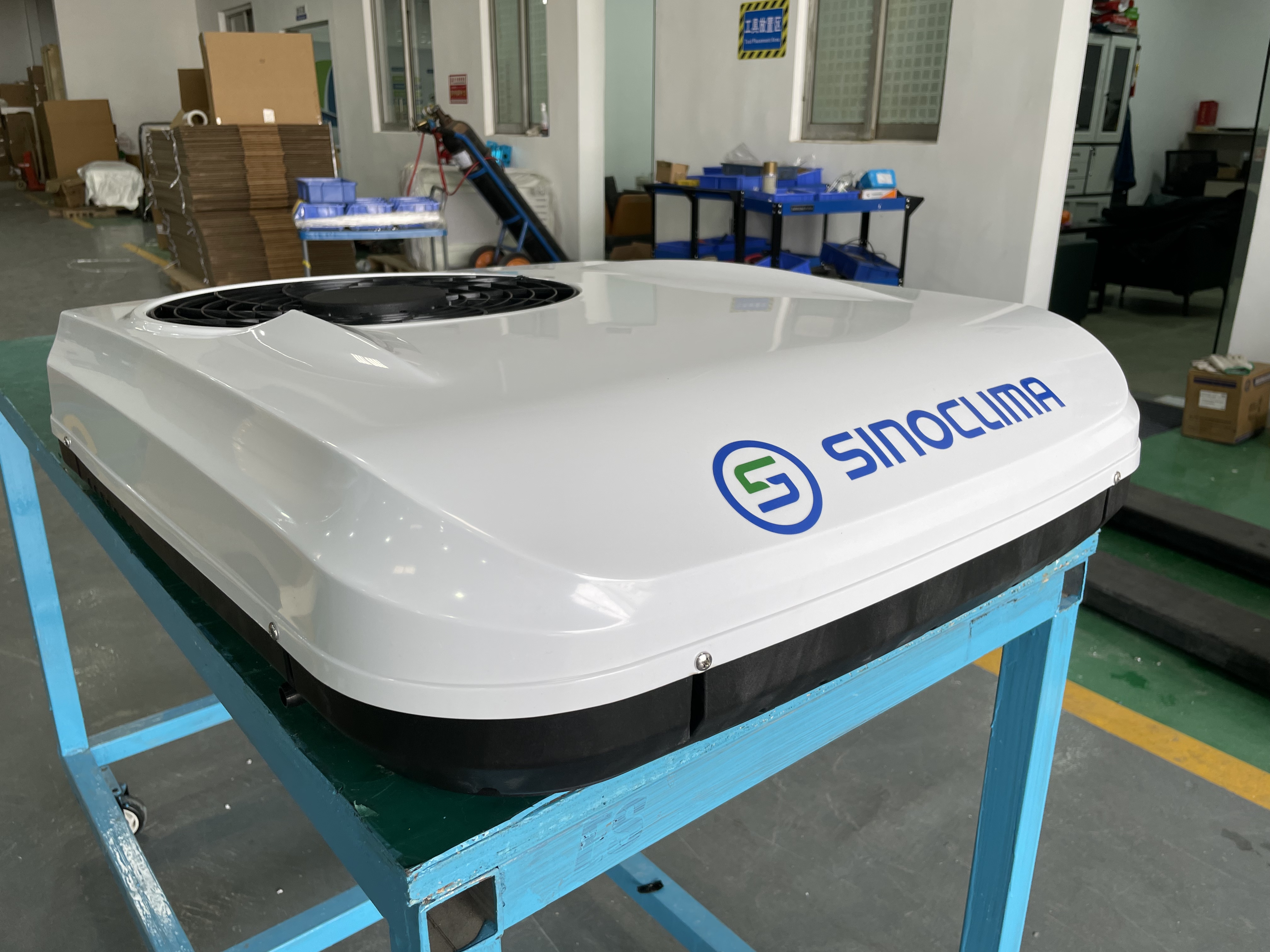

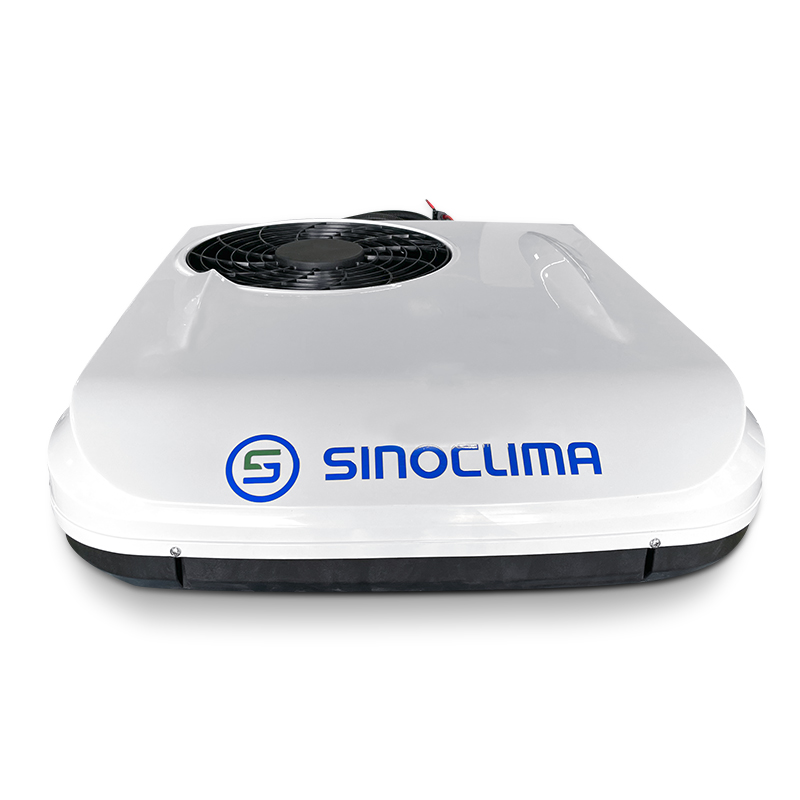

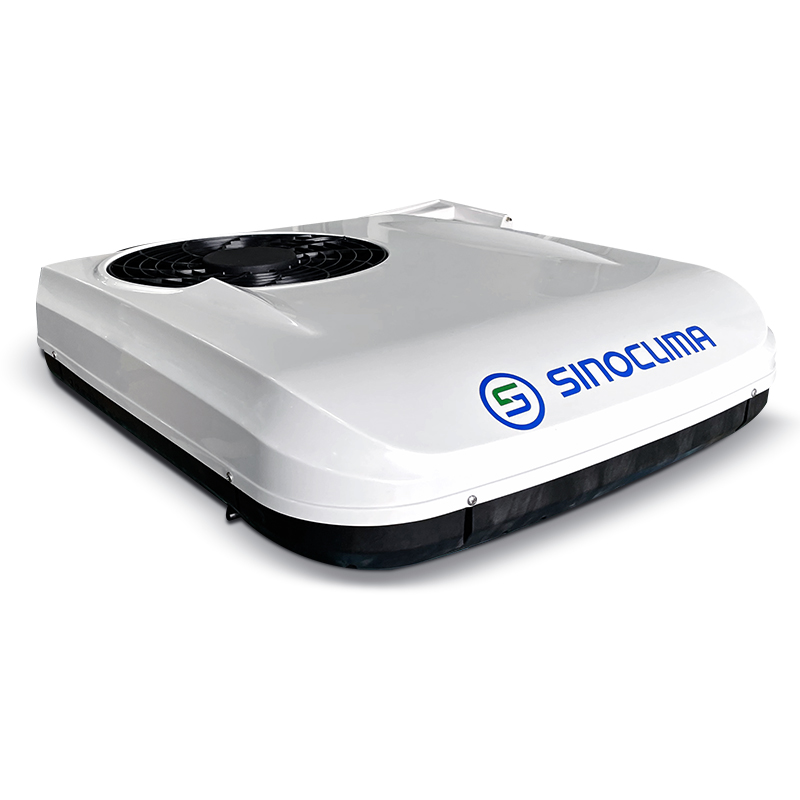

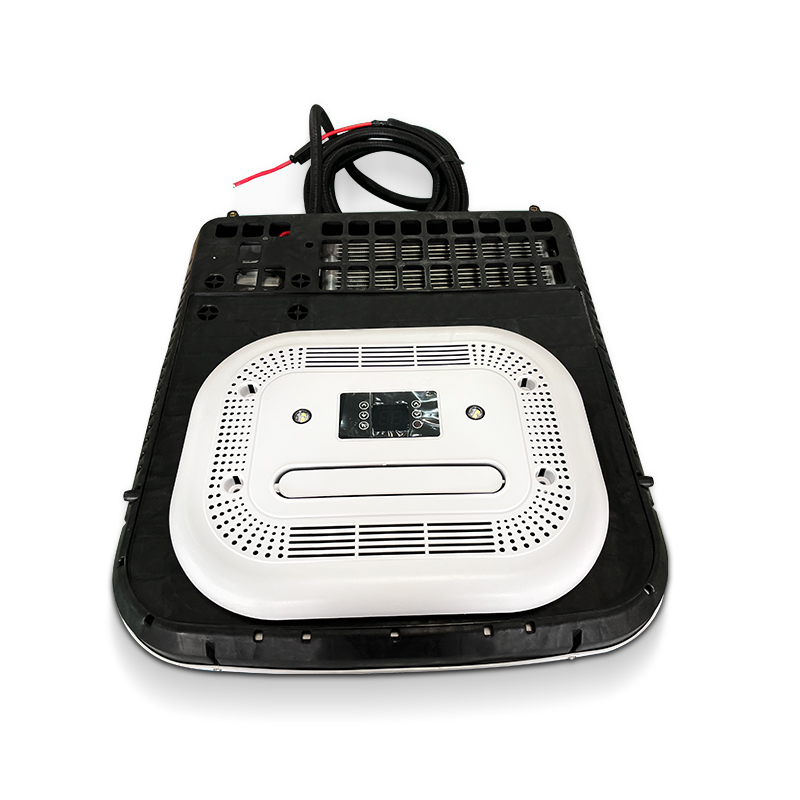

E-2200K

Sinoclima E-2200K 12V/24V rooftop truck cabin air conditioner. 2200W cooling, no-idle, slim design, low noise, easy install. For trucks, vans, tractors & RVs.

Type：Rooftop Mounted Truck Cabin Air Conditioner

Structure：Slim integrated, low profile, rooftop all-in-one

Voltage：DC 12V / 24V / 48V / 72V

Refrigerant：R134a / 450g

Compressor：DC Inverter Scroll Compressor

Controller：Digital control panel + Multi-function remote control

Send Email

Chat Now

Share With:

Introduction

Product Introduction

Great cooling performance. No idling required.
The E-2200K is a DC-powered air conditioning system that operates when the vehicle's engine is turned off, allowing drivers to rest in comfort wherever they are, day or night.

The lightweight and low profile design makes the unit suitable for most applications without compromising fuel economy or chassis space.

The E-2200K keeps commercial vehicle cabs at a safe and comfortable temperature. It's quick and easy to install, quiet in operation, and has a slim design.

Features

12V & 24V DC

Cooling Capacity 2200W/7600BTU max A/C

DC Inverter Scroll Compressor

Light weight only 19.8kg

Digital panel

Multi-function remote control

Low battery cut-off

Low maintenance

Very low noise

Low profile - slim-line design

1 year warranty

Specification

Model	E-2200K
Installation Type	Rooftop AC, slim, integrated
Voltage	DC12V,DC24V,DC48V or DC72V
Cooling capacity	2200W/7600BTU
Rated Power	960W
Current consumption	40-80A
Evaporator blower air vol.	450m3/h
Working Mode	Fan mode/Eco mode/Powerful Mode
Noise	＜65dBa
Refrigerant/Volume	R-134a/450g
Weight	19.8kg
Dimensions	64072.516.5mm
Air outlet plate height	26mm
Vehicle Applications	All trucks, van , tractor and RV cabs etc.

Application

Videos

Inquiry

Consult online customer service

E-2200K

AC-04

E-2400PRO

AC-10PRO

E-2000K

E-3200PRO

AC-12Pro

E-2600PRO

RV-3800PRO

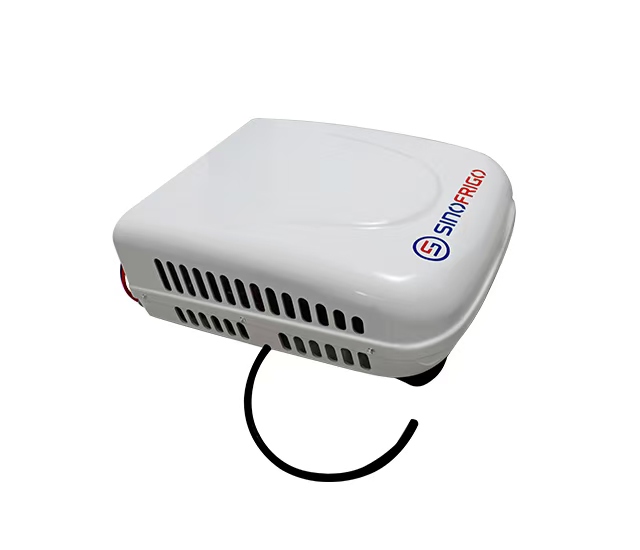

E-2400K
