Monoblock Refrigeration Units M-480
Monoblock Refrigeration Units M-480
Monoblock Refrigeration Units M-480
Monoblock Refrigeration Units M-480
Monoblock Refrigeration Units M-480
Monoblock Refrigeration Units M-480
Monoblock Refrigeration Units M-480
Monoblock Refrigeration Units M-480

M-480

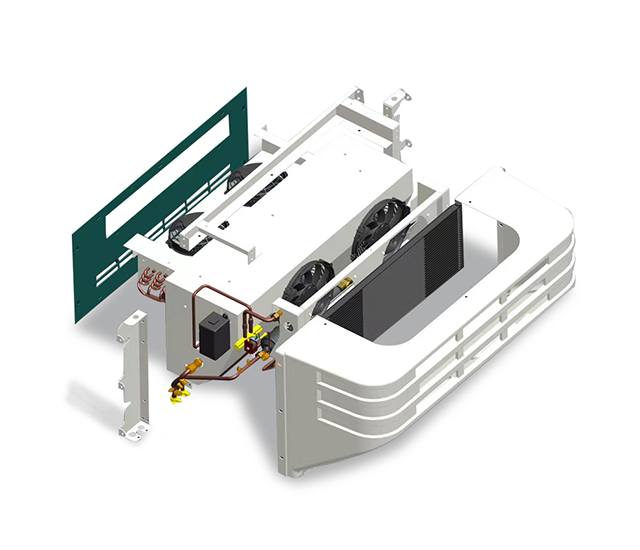

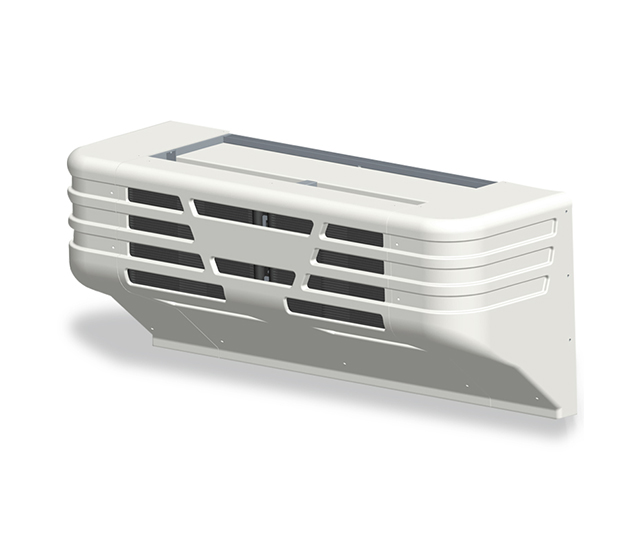

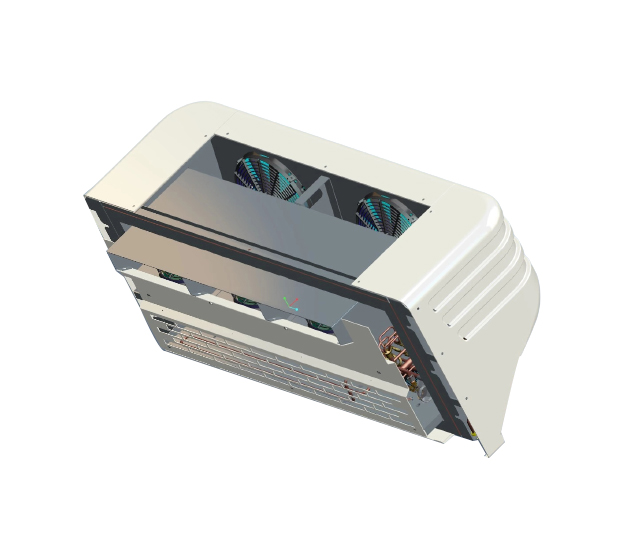

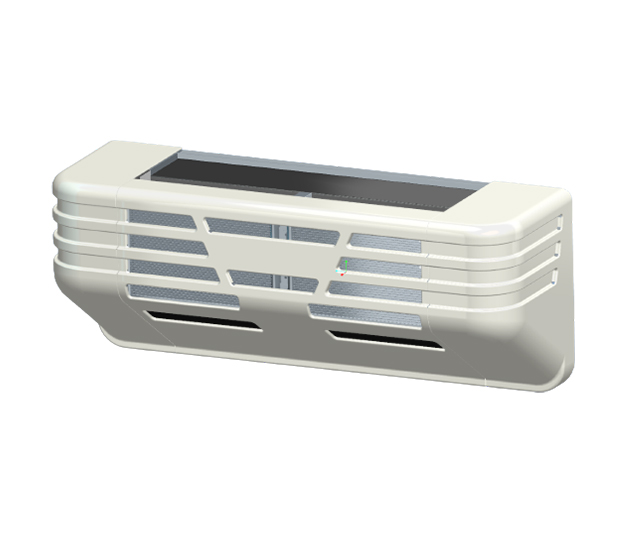

M-480 a unique one-piece condenser & evaporator design which delivers the triple benefits of zero intrusion into the load space to allow highly efficient cargo loading, whilst simplifying installation to the vehicle, and reducing the risk of refrigerant connection leaks compared to the separated major components of traditional systems.
● Type: Split unit vehicle engine driven type
● Refrigerant & Qty: R404A,1.4kg±5%
● Box Inside Temp: -20℃ ~ +15℃
● Defrosting type: Hot gas defrost(Auto/Manual)
Share With:
Introduction
Product Introduction
M-480 a unique one-piece condenser & evaporator design which delivers the triple benefits of zero intrusion into the load space to allow highly efficient cargo loading, whilst simplifying installation to the vehicle, and reducing the risk of refrigerant connection leaks compared to the separated major components of traditional systems.
Sinoclima’s M series range of models is configured to provide superior cooling performance from lightest in class designs, in a wide variety of small, medium and large refrigerated trucks.
Highest quality components are selected throughout, including Danfoss,QP,Valve,Sanden,Castel...
Features

0 cube with 100% box utilization

Light weight

Fast installation

Convenient maintenance

Large air volumes with minimal noise

High reliability

High efficiency swash plate compressor

Optional heating and electric stand-by
Specification
Model M-480

Cooling Capacity
Temperature Watts
0℃ 5100W
-20℃ 2450W
Type Split unit vehicle engine driven type
Refrigerant & Qty R404A,1.4kg±5%
Box Inside Temp -20℃ ~ +15℃
Defrosting type Hot gas defrost(Auto/Manual)
Condenser Type Parallel Flow Condenser
Fan Quantity 2Pcs
Fan Type Axial type
Air Flow Volume 2200 m3/h
Dimensions 1060*730*220 mm
Weight 32Kg
Evaporator Type Inner Grooved Copper Tube and Fin
Fan Quantity 3Pcs
Fan Type Axial type
Air Flow Volume 2200 m3/h
Dimensions 1020*635*210 mm
Weight 26Kg
Compressor Model QP16
Type Swash plate type
Displacement 163cc/r
Refrigerated Oil RL-68H
Applicable Box Volume 12~16m³
Optional function Heating and Electric standby
