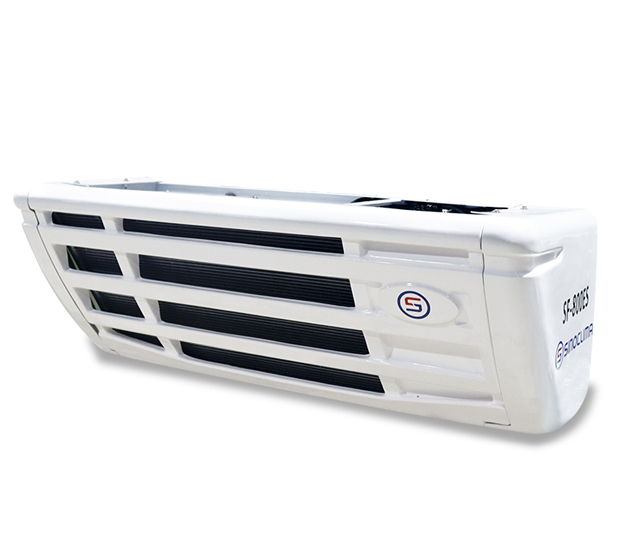

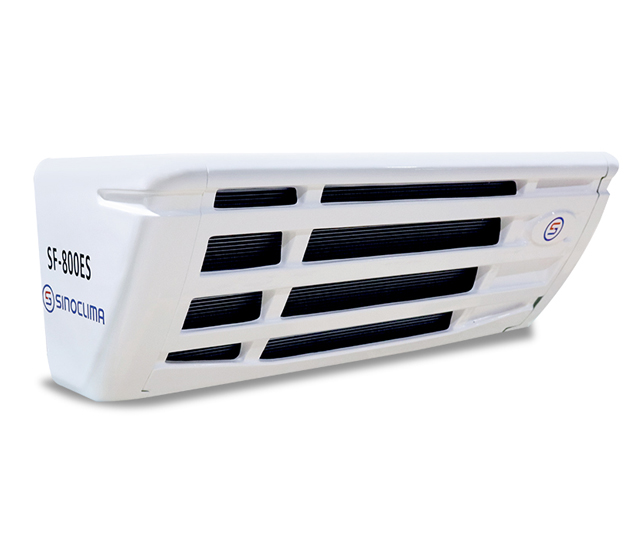

| Model | SF-800ES | |
Cooling Capacity(Road) |
Temperature | Watts |
| 0℃ | 6870W | |
| -20℃ | 3650W | |
| Cooling Capacity(Standby) | 0℃ | 6120W |
| -20℃ | 3050W | |
| Type | Split unit vehicle engine driven type | |
| Refrigerant & Qty | R404A,3.5kg±10% | |
| Box Inside Temp | -20℃ ~ +25℃ | |
| Defrosting type | Hot gas defrost(Auto/Manual) | |
| Condenser | Type | Parallel Flow Condenser |
| Fan Quantity | 2Pcs | |
| Fan Type | Axial type | |
| Air Flow Volume | 2200 m3/h | |
| Dimensions | 1410*543*503mm | |
| Weight | 105Kg | |
| Evaporator | Type | Inner Grooved Copper Tube and Fin |
| Fan Quantity | 3Pcs | |
| Fan Type | Axial type | |
| Air Flow Volume | 2200 m3/h | |
| Dimensions | 1230*550*300 mm | |
| Weight | 37Kg | |
| Compressor | Road Model | QP21/213cc |
| Standby Model | DDH488 | |
| Refrigerated Oil | RL-68H | |
| Electric Standby Power Supply | AC220V 1Phase 50HZ / AC380V 3Phase 50HZ | |
| Applicable Box Volume | 40~55m³ 8 Pallet, 16ft 18ft | |
| Optional function | Heating | |
