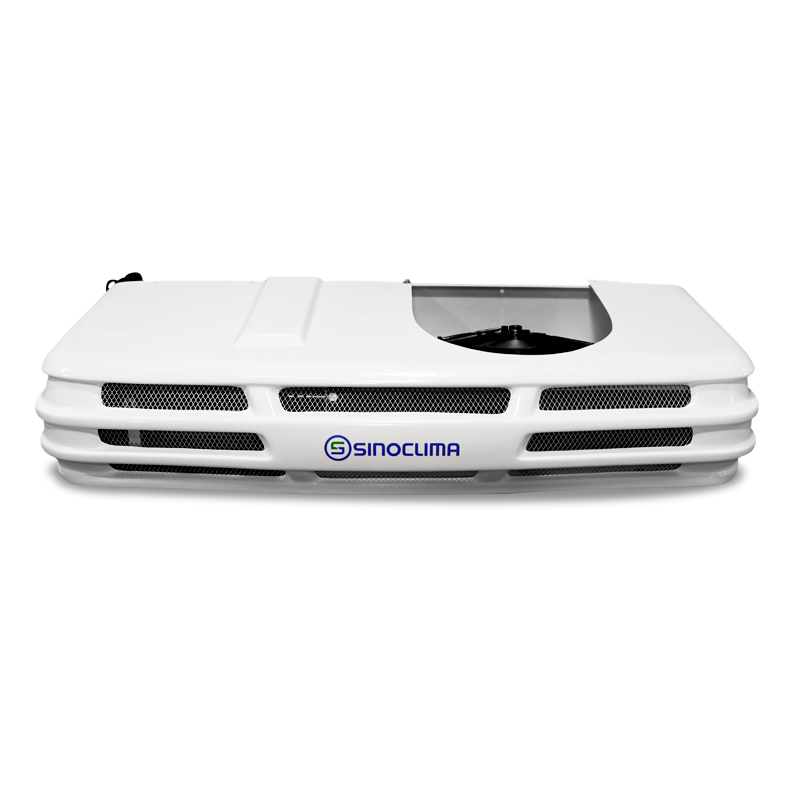

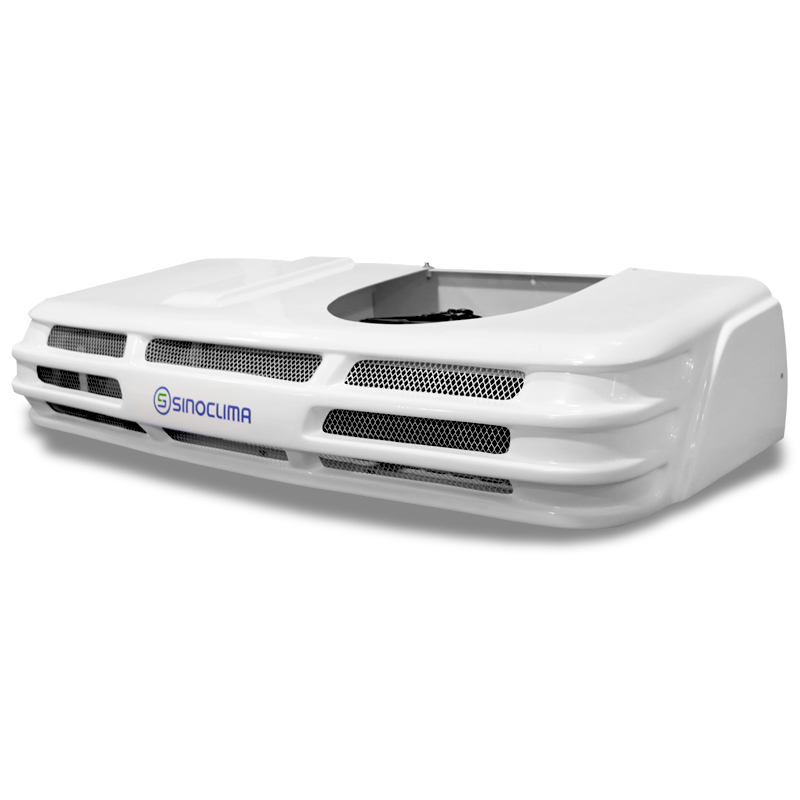

| Model | EV-200CS | |
Cooling Capacity |
Temperature | Watts |
| 0℃ | 2050W | |
| -18℃ | N/A | |
| Control Voltage | DC12/24V | |
| Airflow Volume | 900m³/h | |
| Refrigerant & Volume | R134A,1.0kg±5% | |
| Box Inside Temp | -5℃ ~ +25℃ | |
| Defrosting type | Hot gas defrost(Auto/Manual) | |
| Voltage & Amps | 12VDC | 60Ah |
| 24VDC | 33Ah | |
| Condenser | Type | Parallel Flow Condenser |
| Fan Quantity | 1Pc | |
| Dimensions | 1230*485*240 mm | |
| Weight | 45Kg | |
| Evaporator | Type | Inner Grooved Copper Tube and Fin |
| Fan Quantity | 1Pc | |
| Dimensions | 555*520*170 mm | |
| Weight | 6.8Kg | |
| Compressor | Model | GY20 |
| Displacement | 20ml/r | |
| Lubricating Oil | POE RL68H | |
| Applicable Box Volume | 2~6m³ | |
