Truck Refrigeration Units SF-200
Truck Refrigeration Units SF-200
Truck Refrigeration Units SF-200
Truck Refrigeration Units SF-200
Truck Refrigeration Units SF-200
Truck Refrigeration Units SF-200
Truck Refrigeration Units SF-200
Truck Refrigeration Units SF-200

SF-200

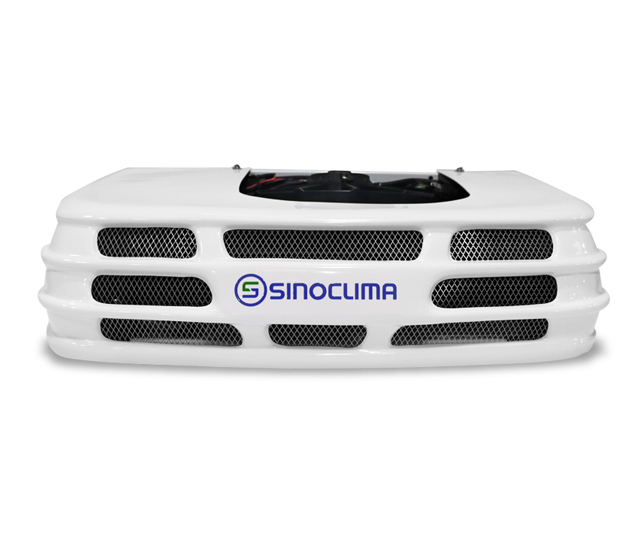

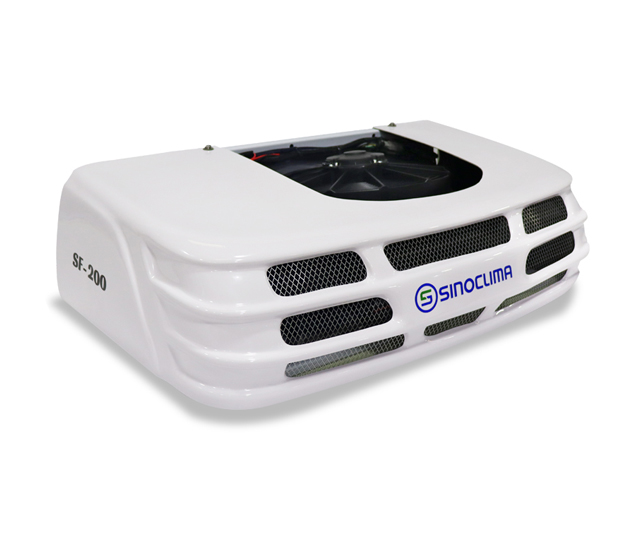

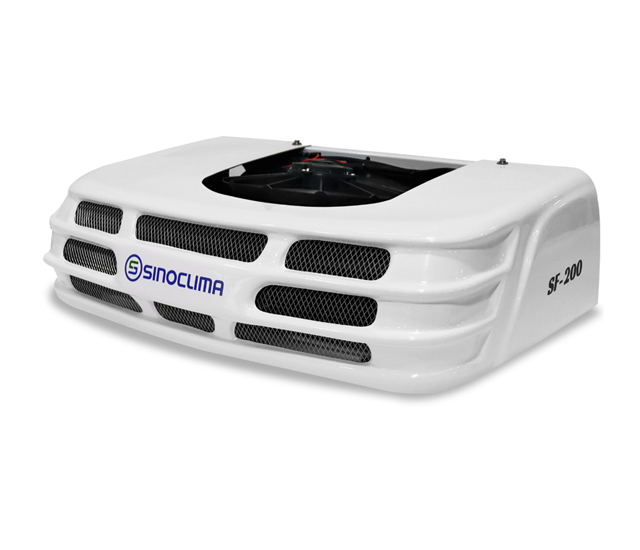

SF-200 transport refrigeration equipment is a road-only direct drive truck freezer unit, With enough cooling capacity, it provides the cold you need to deliver vegetables, fruit and frozen foods safely and reliably.
● Type: Split unit vehicle engine driven type
● Refrigerant & Qty: R404A,0.8kg±5%
● Box Inside Temp: -25℃ ~ +15℃
● Defrosting type: Hot gas defrost(Auto/Manual)
Share With:
Introduction
Product Introduction
SF-200 transport refrigeration equipment is a road-only direct drive truck freezer unit, With enough cooling capacity, it provides the cold you need to deliver vegetables, fruit and frozen foods safely and reliably . With a choice of R404A and R134A gas,it can meet your chilled and frozen applications.

Fast cooling, and low system pressure in the truck freezer units. Which are mainly used for the small truck, pick up.Hot selling in Tunisia, Morocco, Egypt, Algeria, Nigeria, Mauritius, South Africa......, Choose SF-200 to deliver fresh and frozen goods in your city.
Features

Streamlined appearance, beautiful and elegant

An internal ultra-thin evaporator greatly increases the cargo loading capacity

Large cooling capacity ensure the safety of the goods even in high ambient temperature or with frequent door openings

Large airflow volume maintains the goods in good condition

Microprocessor control and fault alarming, easy operation and safe

Fast installation, convenient maintenance

Optional heating and electric stand-by
Specification
Model SF-200

Cooling Capacity
Temperature Watts
0℃ 2020W
-20℃ 1150W
Type Split unit vehicle engine driven type
Refrigerant & Qty R404A,0.8kg±5%
Box Inside Temp -25℃ ~ +15℃
Defrosting type Hot gas defrost(Auto/Manual)
Condenser Type Parallel Flow Condenser
Fan Quantity 1Pc
Fan Type Axial type
Air Flow Volume 1600 m³/h
Dimensions 870*450*220mm
Weight 27Kg
Evaporator Type Inner Grooved Copper Tube and Fin
Fan Quantity 1Pc
Fan Type Axial type
Air Flow Volume 1600 m³/h
Dimensions 610*540*180mm
Weight 13Kg
Compressor Model GY-5S11
Type Swash plate type
Displacement 108cc/r
Refrigerated Oil RL-68H
Applicable Box Volume 6~10m³
Optional function Heating and Electric standby
