Reliable and low failure rate.
World-class key components for the manufacture of refrigeration systems.
10 years experience in R&D, manufacturing and sales. We have a large number of parts in stock to guarantee after-sales demand.
Stable cooling performance.
Whether chilling or freezing, SC-358 refrigeration units are built to provide fast, stable, temperature-controlled performance to meet your needs.
Including but not limited to food & beverage trucks at parks, campsites, fairs, parties, resorts, family reunions, weddings, fruit and vegetable preservation, fish and seafood storage, etc.

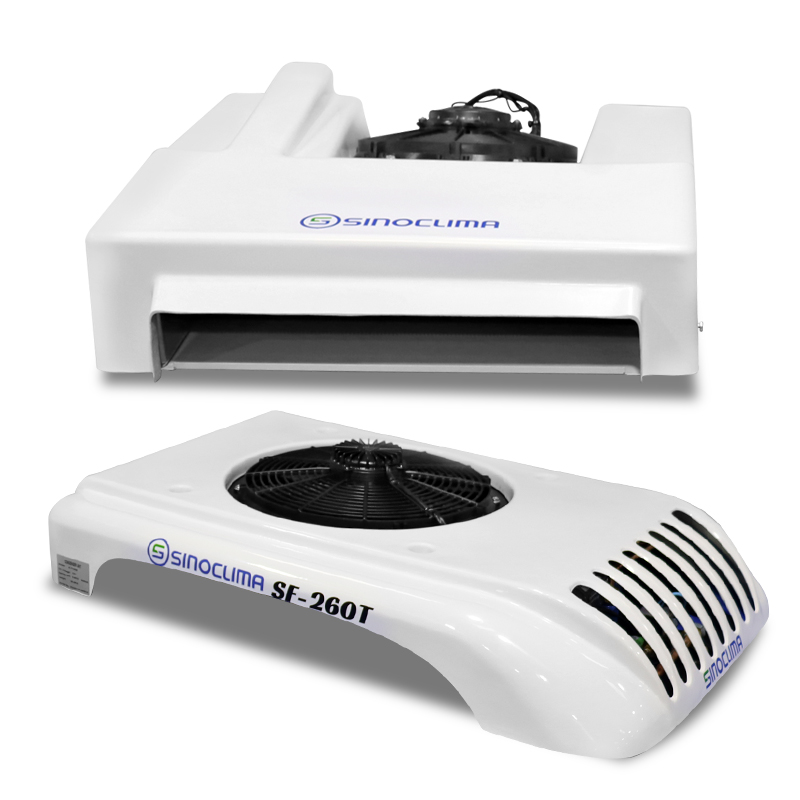

| MODEL | SF-200T | SF-260T | ||
| Cooling Capacity | Conditions | Temperature | Watts | Watts |
| Road | 0℃ | 2020W | 2020W | |
| -18℃ / -20℃ | 1130W | 1130W | ||
| Type | - | Split unit vehicle engine driven type | ||
| Control Voltage | DC 12V/24V | - | ||
| Defrosting | Hot gas defrost(Auto./Manual) | Hot gas defrost(Auto/Manual) | ||
| Temperature Range / Box Inside Temp | -18℃ ~ +15℃ | -20℃ ~ +15℃ | ||
| Refrigerant & Volume / Refrigerant & Qty | R404A,0.8kg±5% | R404A,0.8kg±5% | ||
| Airflow Volume (Condenser / Evaporator) | 900m³/h | 1200 m³/h | ||
| Compressor | Model | GY-5S11/108cc/r | GY-5S14 | |
| Displacement | 138cc/r | |||
| Type | - | Swash plate type | ||
| Refrigerated Oil | - | RL-68H | ||
| Condenser | Type | Parallel Flow Condenser | Parallel Flow Condenser | |
| Qty of Fans / Fan Quantity | 1Pc | 1Pc | ||
| Fan Type | - | Axial type | ||
| Air Flow Volume | - | 1200 m³/h | ||
| Dimensions | 870×450×220 mm | 920*665*210 mm | ||
| Weight | 27Kg | 26Kg | ||
| Evaporator | Type | Inner Grooved Copper Tube and Fin | Inner Grooved Copper Tube and Fin | |
| Qty of Fans / Fan Quantity | 1Pc | 1Pc | ||
| Fan Type | - | Axial type | ||
| Air Flow Volume | - | 1200 m³/h | ||
| Dimensions | 610×540×180 mm | 800*600*180 mm | ||
| Weight | 13Kg | 13Kg | ||
| Recommended Box Volume / Applicable Box Volume | 6~10m³ | 8~12m³ | ||
| Optional function | Heating and Electric standby | Heating and Electric standby | ||
