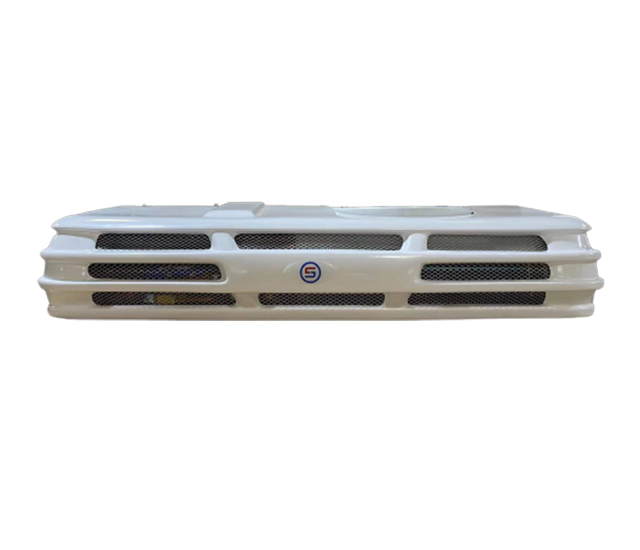

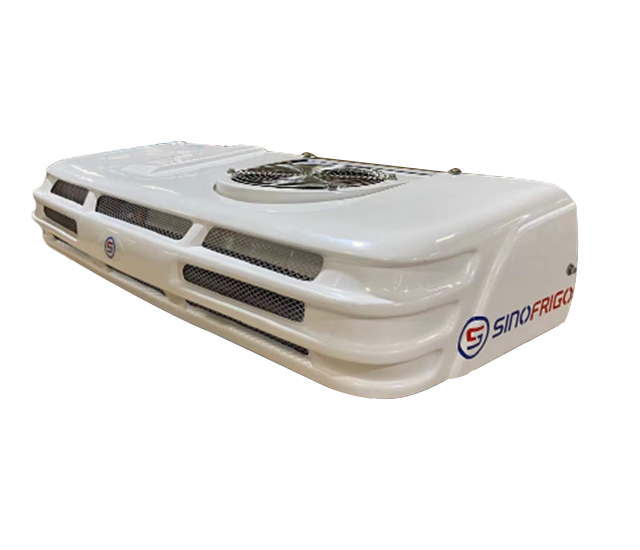

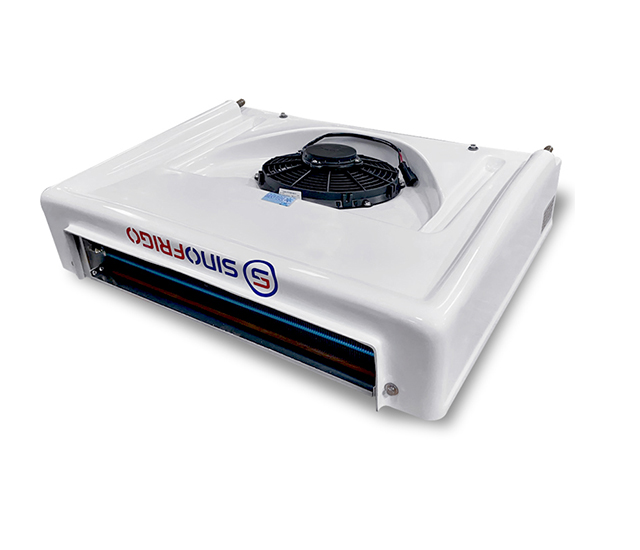

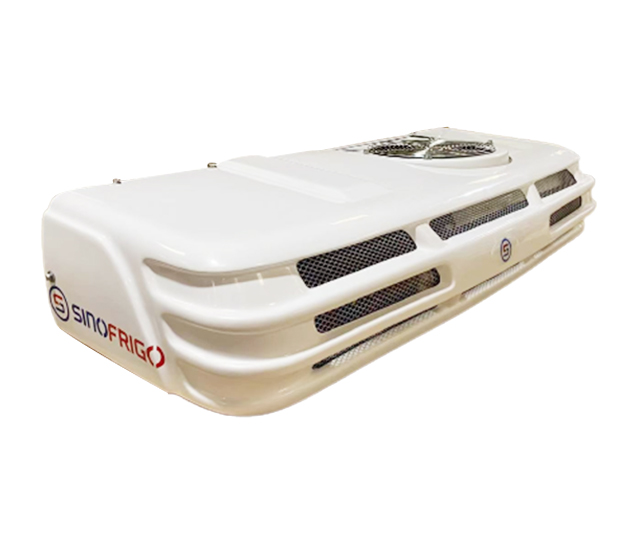

Electric Standby Truck Refrigeration Units SF-200ES
Electric Standby Truck Refrigeration Units SF-200ES
Electric Standby Truck Refrigeration Units SF-200ES
Electric Standby Truck Refrigeration Units SF-200ES
Electric Standby Truck Refrigeration Units SF-200ES
Electric Standby Truck Refrigeration Units SF-200ES
Electric Standby Truck Refrigeration Units SF-200ES
Electric Standby Truck Refrigeration Units SF-200ES

SF-200ES

Sinoclima SF-200ES series units are designed for fresh, frozen and deep frozen applications .This unit is available with Electric Standby, the unit still can work over night when plug in 220V external ac power when the engine is off.
● Type: Split unit vehicle engine driven type
● Refrigerant & Qty: R404A,0.8kg±5%
● Box Inside Temp: -20℃ ~ +15℃
● Defrosting type: Hot gas defrost(Auto/Manual)
Share With:
Introduction
Product Introduction

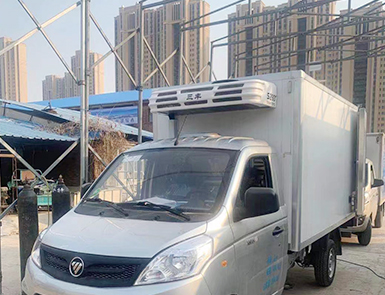

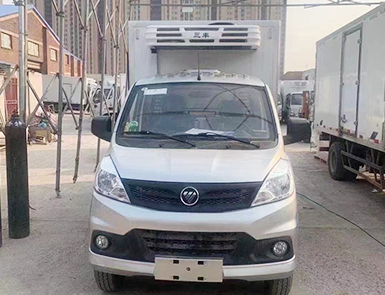

Sinoclima SF-200ES series units are designed for fresh, frozen and deep frozen applications .This unit is available with Electric Standby, the unit still can work over night when plug in 220V external ac power when the engine is off. You can use the electric standby power when loading or parking, saving cost and protecting the environment. Apply for a 6 -12 m³small refrigerated truck body.

Hot selling in Chile, Africa, Russia, Eastern Europe, Panama, Guatemala Peru, Ecuador, Paraguay, Uruguay, Colombia, Argentina, Bolivia, Mania, Bulgaria, Croatia, Serbia, Hungary, and Poland...
Features

Electric Standby Compressor built in condenser

Reducing Operating Costs by up to 70%

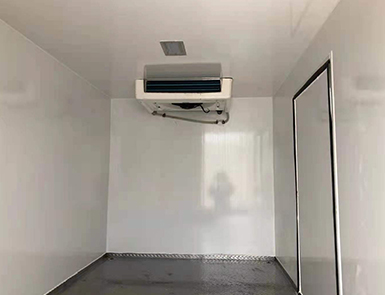

Ultra-Slim Evaporator with Huge Air Volume

In-cab Digital Controller, with e-diagnostics

R404a eco-friendly Refrigerant

Operation on 12/24V DC Vehicles

Automatic and Manual Hot Gas Defrost

Oil Separator and Refrigerant Reservoir protect the compressor
Specification
Model SF-200ES

Cooling Capacity(Road)
Temperature Watts
0℃ 2020W
-20℃ 1130W
Cooling Capacity(Standby) 0℃ 1900W
-20℃ 960W
Type Split unit vehicle engine driven type
Refrigerant & Qty R404A,0.8kg±5%
Box Inside Temp -20℃ ~ +15℃
Defrosting type Hot gas defrost(Auto/Manual)
Condenser Type Parallel Flow Condenser
Fan Quantity 1Pc
Fan Type Axial type
Air Flow Volume 1200 m3/h
Dimensions 1230*485*240mm
Weight 75Kg
Evaporator Type Inner Grooved Copper Tube and Fin
Fan Quantity 1Pc
Fan Type Axial type
Air Flow Volume 1200 m3/h
Dimensions 800*580*200 mm
Weight 13Kg
Compressor Road Model GY-5S14 138cc/r
Standby Model DDH211
Refrigerated Oil RL-68H
Electric Standby Power Supply AC220V 1Phase 50HZ
Applicable Box Volume 6~12m³
Optional function Heating
