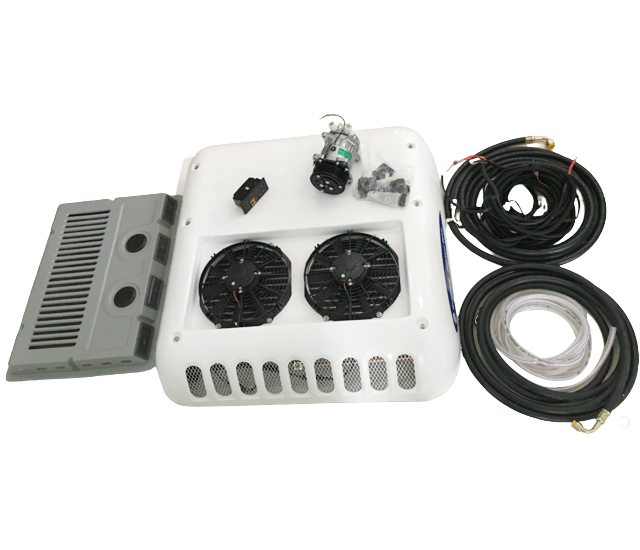

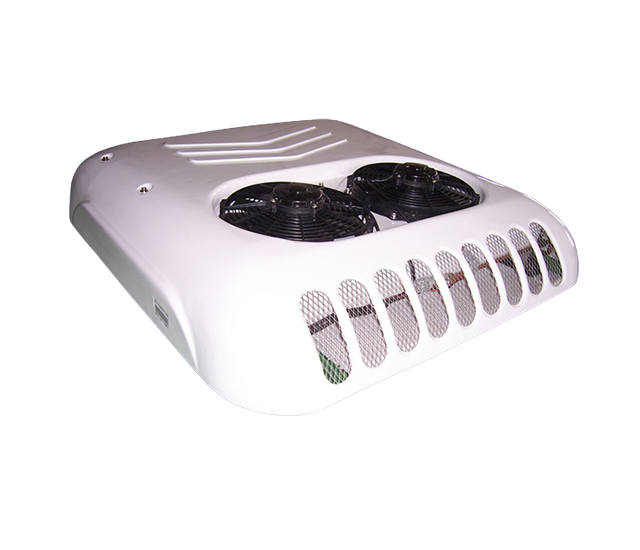

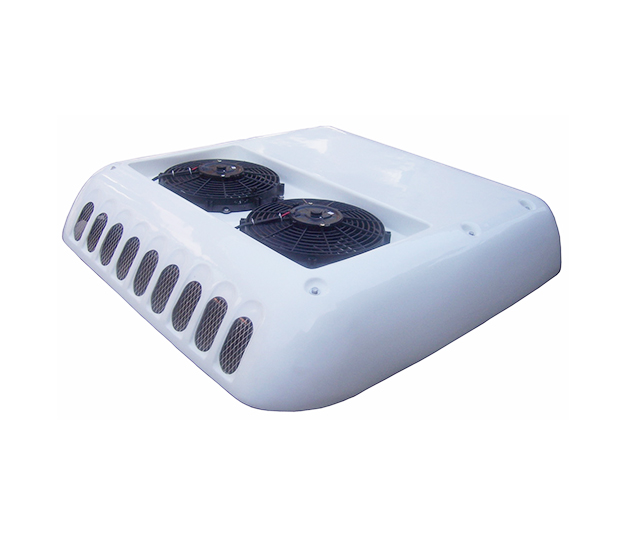

| Model | AC-10PRO | |||
| Cooling Capacity | 10.0 Kw | 8,500 Kcal/h | 34,000 BTU | |
| Heating Capacity | N/A | |||
| Fresh Air | N/A | |||
| Compressor | Model | TM16 | ||
| Displacement | 163cc | |||
| Oil Type | ZXL PAG100 | |||

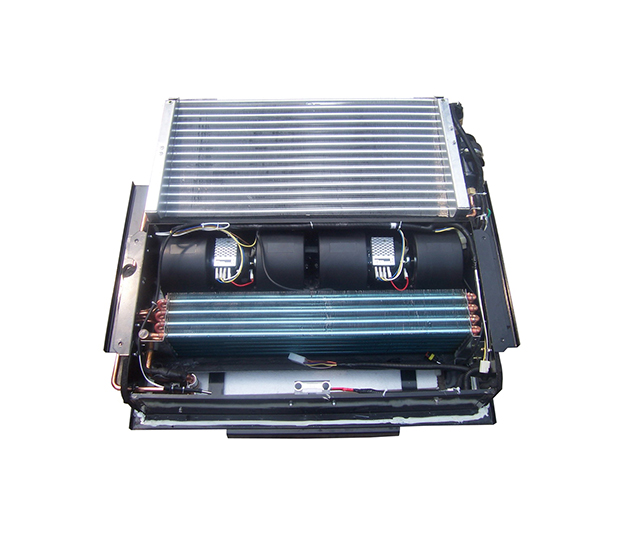

| Evaporator | Type | Hydrophilic aluminum foil with internal ridge copper tube | ||
| Air Flow | 1700 m3/h | |||
| Fan Motor | 3-speed centrifugal type | |||
| No. of fan | 1 pc | |||
| Current | 16 A | |||
| Condenser | Type | Aluminum foil with internal ridge copper tube | ||
| Air Flow | 3,800 m3/h | |||
| Fan Motor | Axial type | |||
| No. of fan | 2 pcs | |||
| Current | 16 A | |||
| Total Current | < 32A | |||

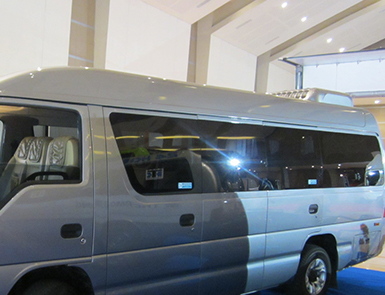

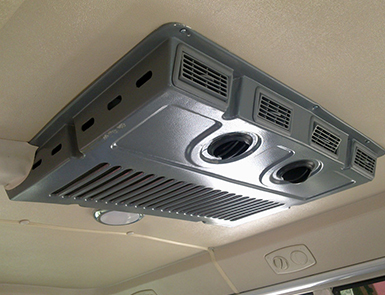

| Application | 6.0~7.0 meter minibus | |||
