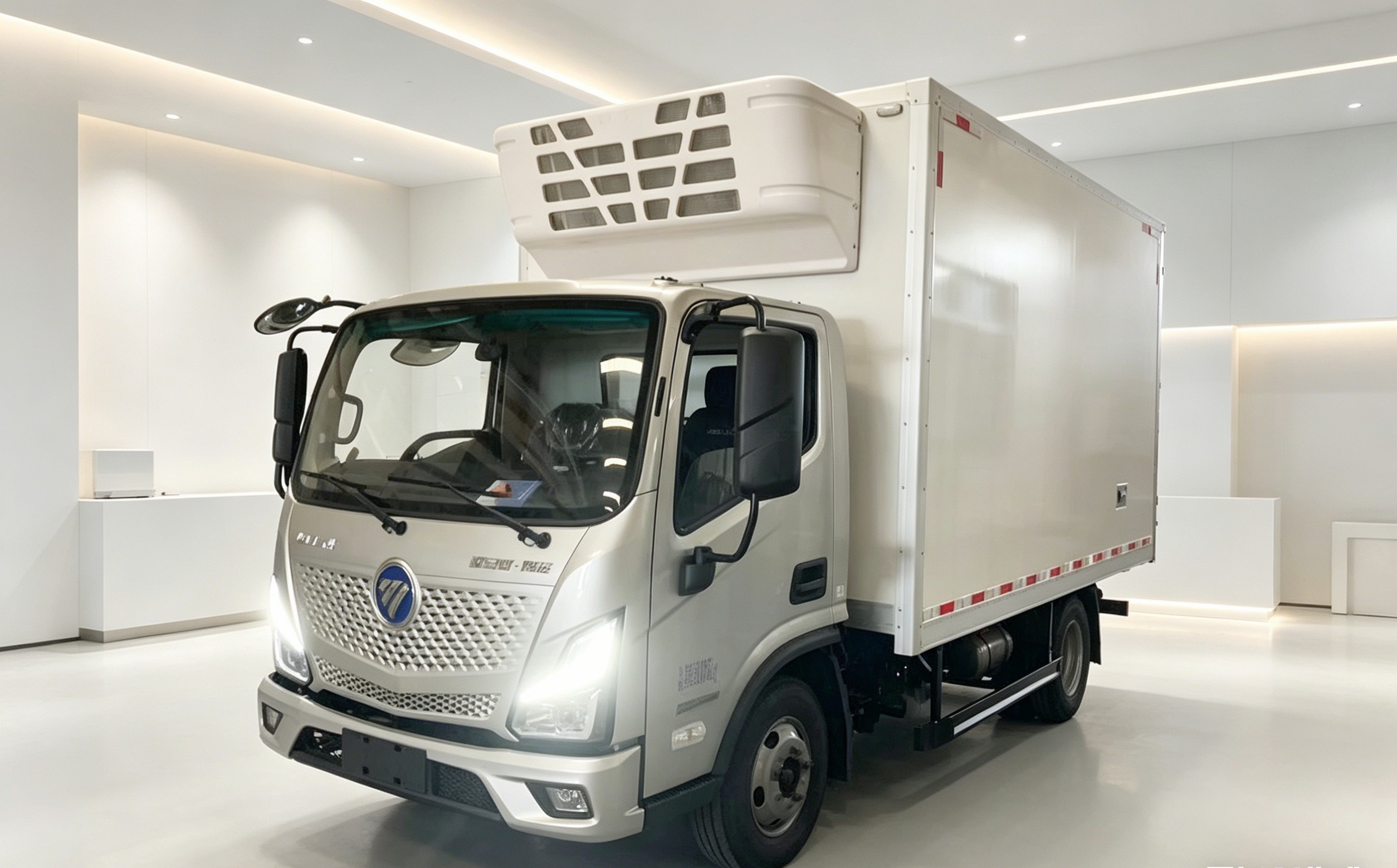

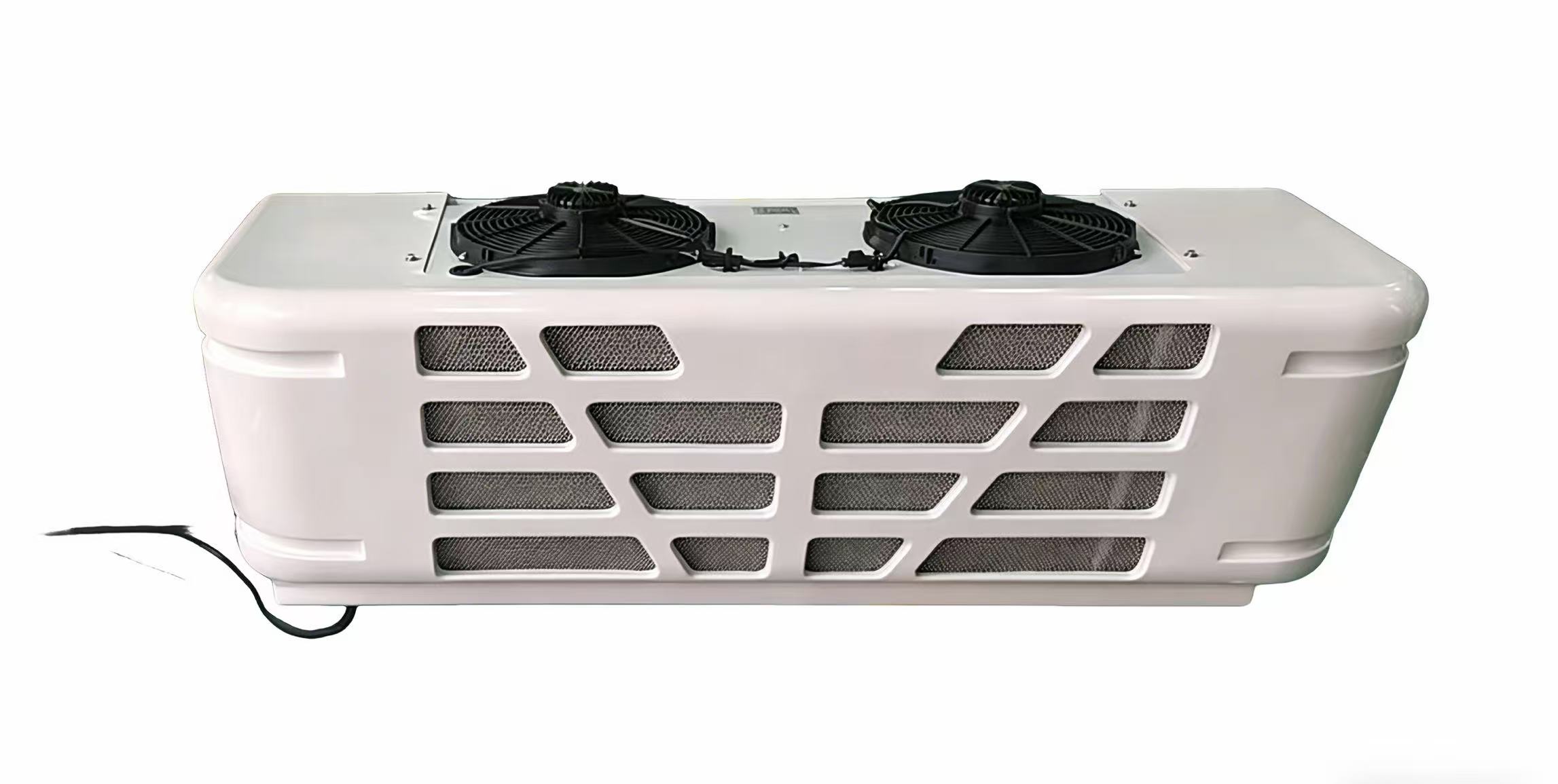

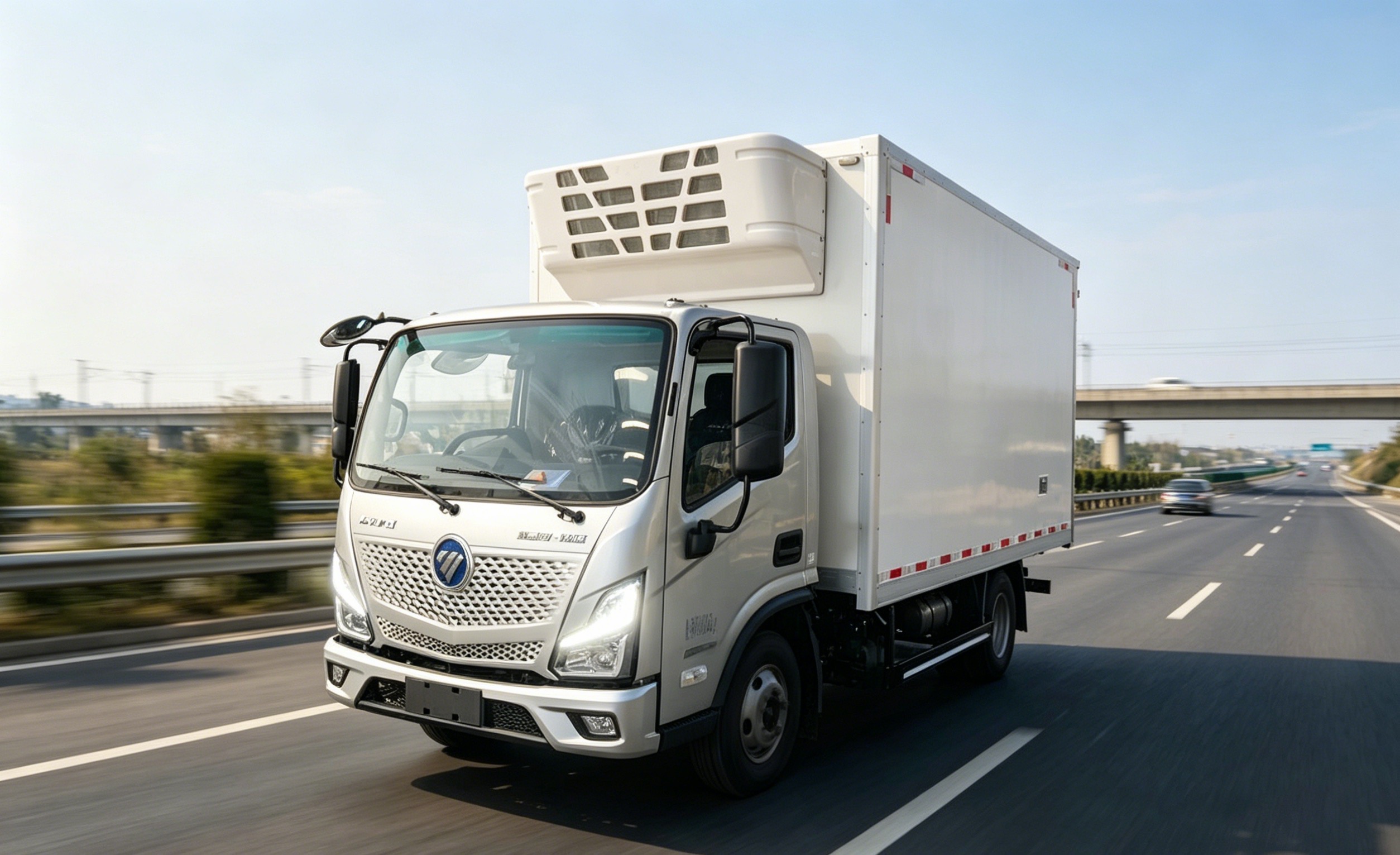

Full electric truck van refrigeration SF-600EV

SF-600EV

All-electric SF-680EV EV truck refrigeration unit with DC high voltage 400-750V, inverter scroll compressor, quiet energy-saving, ideal for fruit, seafood, catering refrigerated light trucks & mid-size vans.

Product Type: All-electric integrated monoblock refrigeration unit

Structure: Integrated compact unit combining condenser, evaporator and compressor

Voltage: High Voltage DC 400V – 750V; Control Voltage DC 12V/24V

Refrigerant: R404A CFC Free, Refrigerant Charge 2.5kg ± 5%

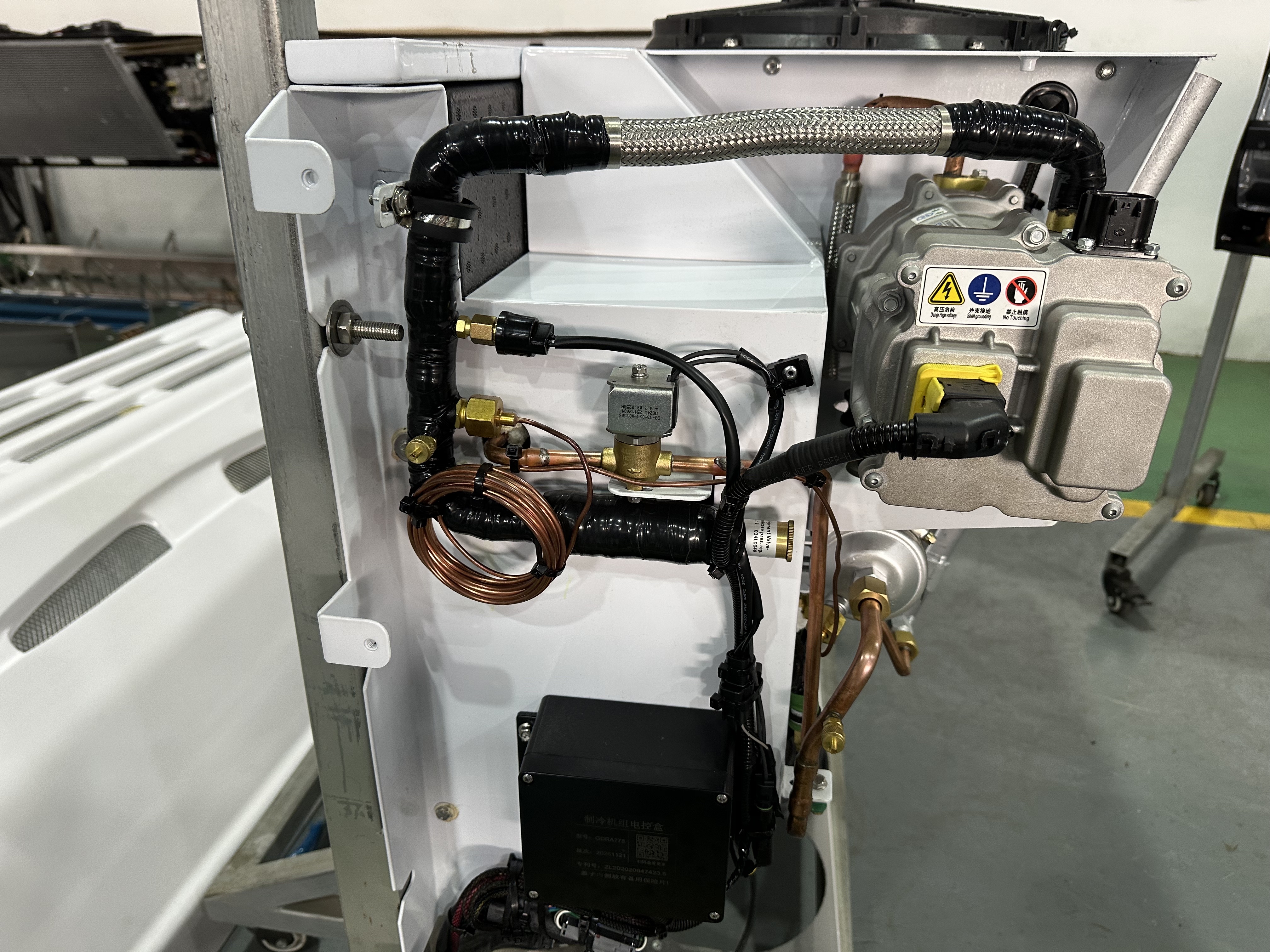

Compressor: Hermetic DC Inverter Scroll Compressor, Model GY50.E540-101, Displacement 50ml/r

Controller: Intelligent electronic temperature control, auto & manual hot gas defrost, temperature range -20℃ ~ +15℃

Send Email

Chat Now

Share With:

Introduction

Product Introduction

High Efficiency:
The SF-660EV all-electric integrated refrigeration unit is designed specifically for new energy refrigerated trucks. It adopts an "integrated design," combining the condenser, evaporator, and electric compressor into a compact unit. Not only reducing the overall vehicle weight but also providing a quiet, zero-emission temperature control solution for urban delivery scenarios.
Safe and Reliable:
The unit is directly driven by high-voltage electricity from a pure electric chassis, making it compatible with mainstream new energy light trucks and mid-sized vans on the market. The integrated design simplifies the installation process, eliminating the need for additional space in the chassis and reducing after-sales maintenance costs.
Wide Application:
Including but not limited to food & beverage trucks at parks, campsites, fairs, parties, resorts, family reunions, weddings, fruit and vegetable preservation, fish and seafood storage, etc.

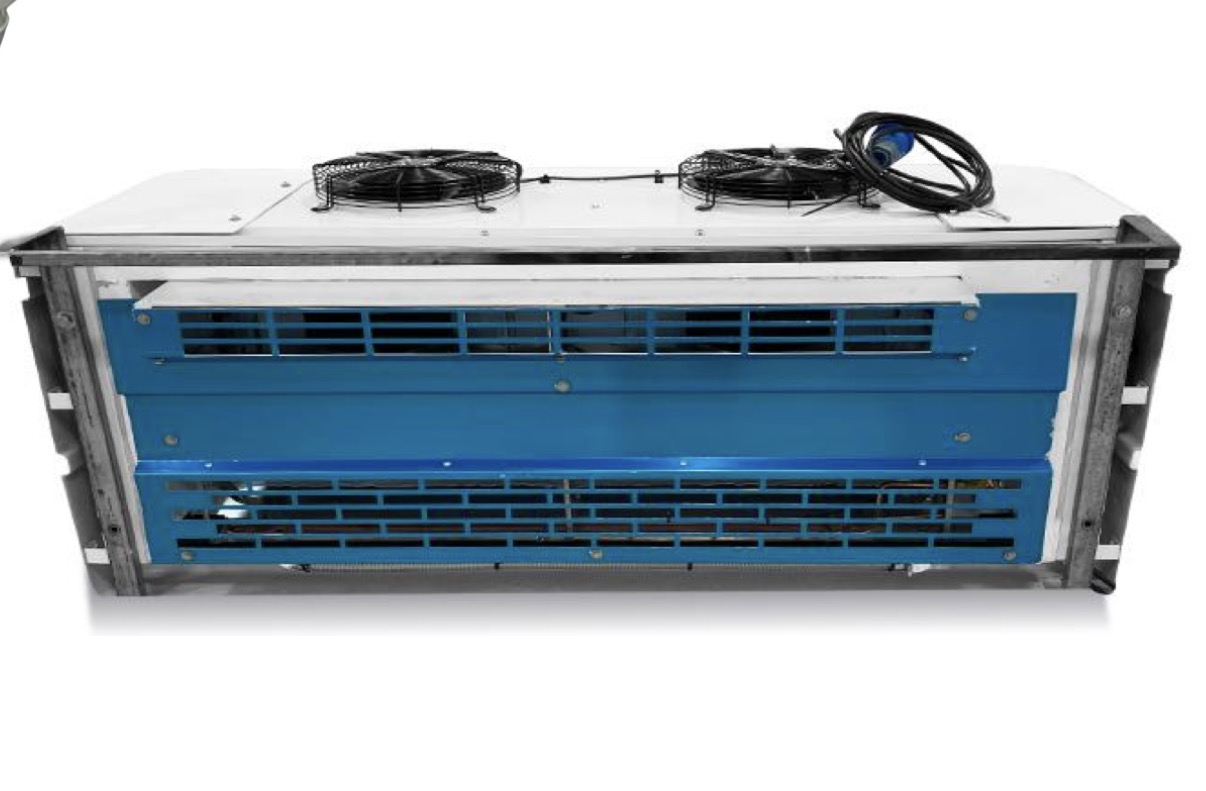

Features

❄️Pure Electric Drive:Fully electric drive, allowing independent cooling during both driving and parking, eliminating belt drive losses, resulting in lower energy consumption and compliance with green vehicle standards.

❄️Integrated Design: Compact structure, strong vibration resistance, effectively avoiding refrigerant leakage risks, suitable for urban driving conditions with frequent starts and stops.

❄️Intelligent Temperature Control: Typically supports a precise electronic temperature control system, with a temperature setting range generally between -30℃ and 30℃, catering to both freezing and preservation needs.

❄️Quiet and Energy-Saving: The electric compressor operates with low noise, and combined with intelligent fan speed regulation, it reduces energy consumption and noise pollution to residential areas

Specification

MODEL			SF-680EV
Cooling Capacity	Conditions	Temperature	Watts
	Road	0℃	7450W
		-18℃	3650W
Power Supply Requirements:			High Voltage DC 400V–750V (compatible with pure electric chassis)
Control Voltage			DC 12V/24V
Defrosting			Hot gas defrost(Auto./Manual)
Temperature Range			-20℃ ~ +15℃

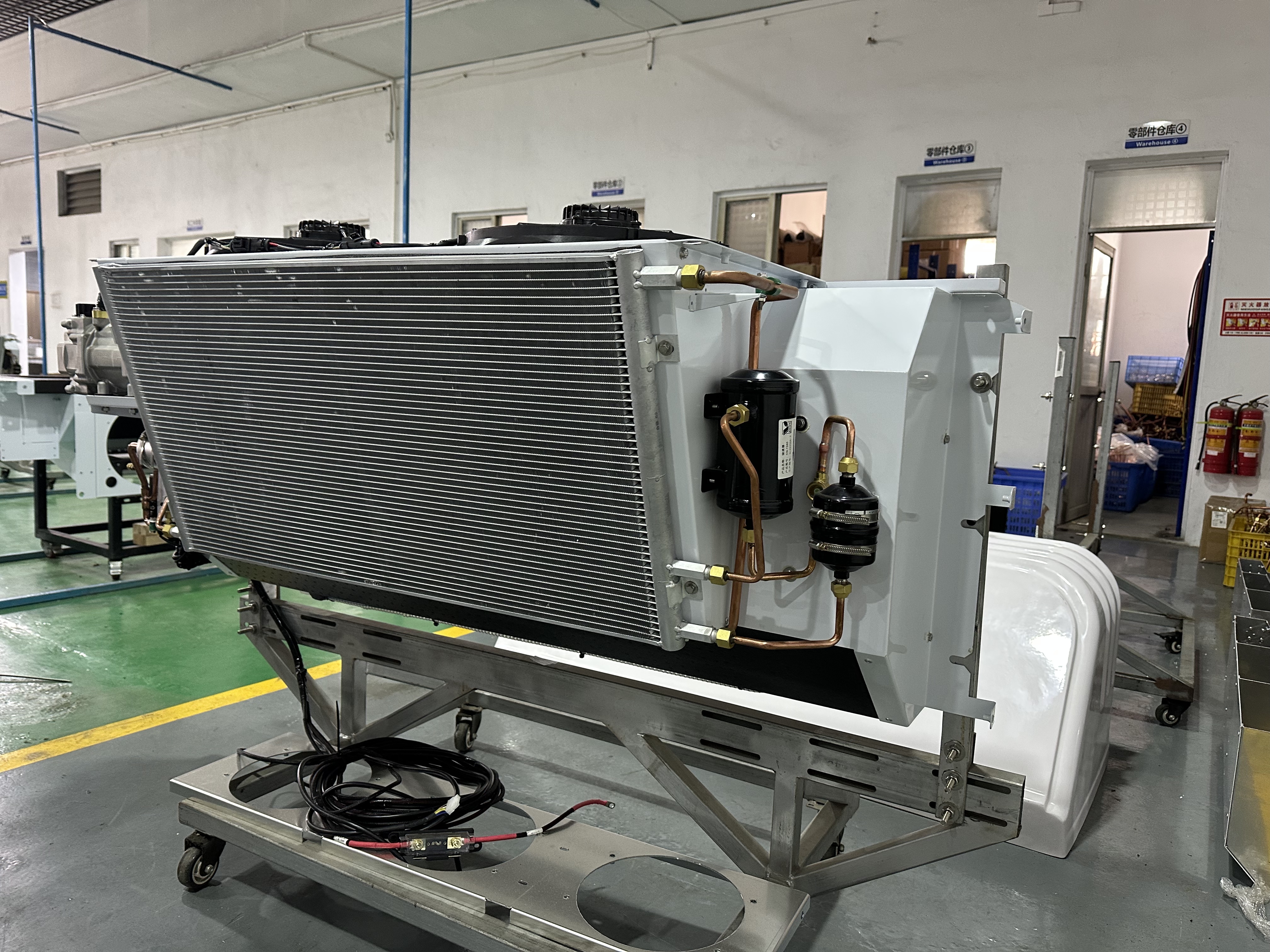

Condenser fan&Airflow Volume			2 pcs 14" fans 2800m³/h

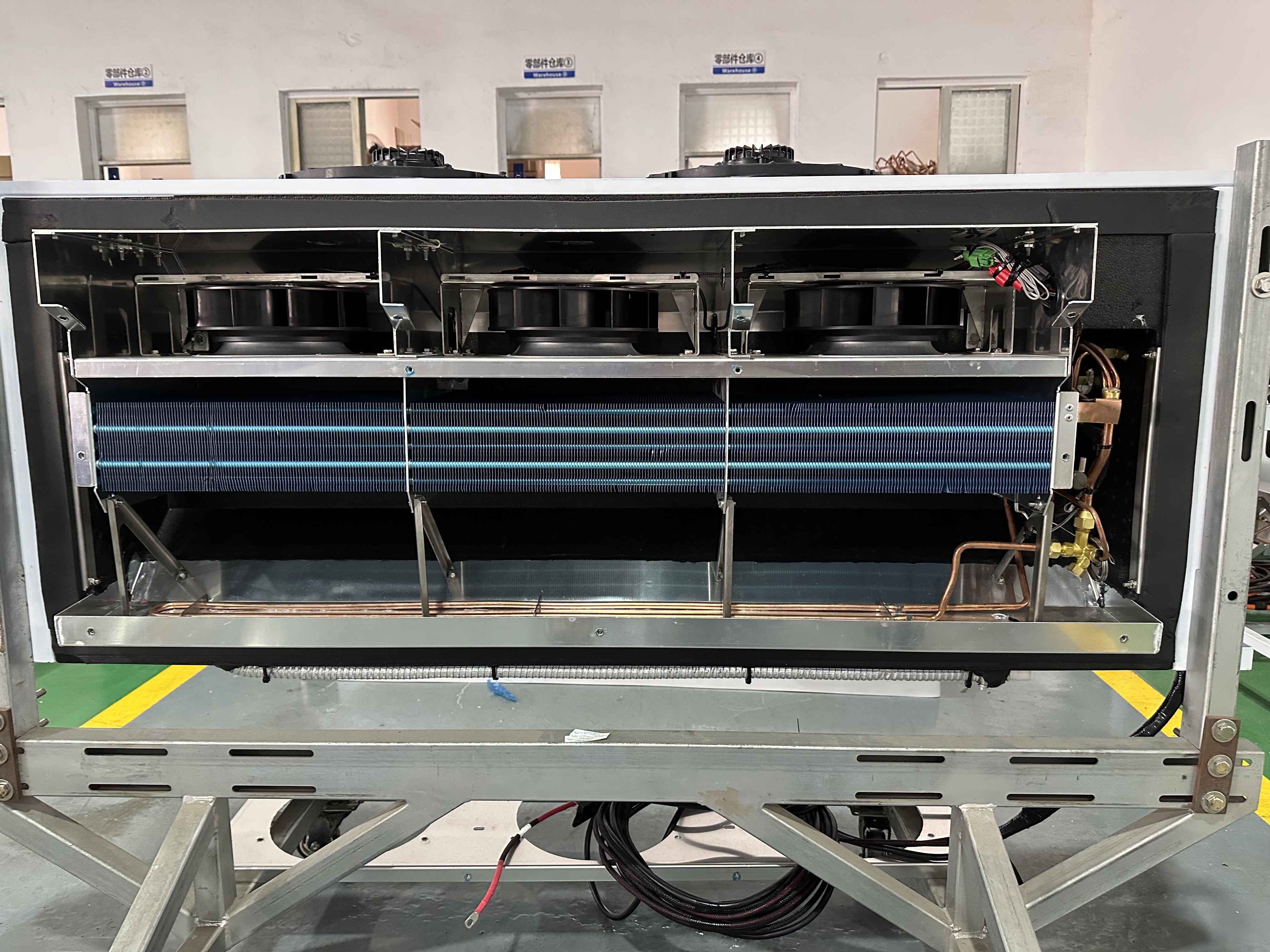

Evaporator fan&Airflow Volume			3 centrifugal fans 2800m³/h
Protection class			IP67
Refrigerant type			R404A CFC Free
Refrigerant Charge			2.5kg±5%
Weight			85KG
Compressor type			Hermetic DC Inverter Scroll Compressor
Compressor model			GY50.E540-101
Compressor displacement			50ml/r
Recommended Box Volume			30~50m³
External dimensions(mm)			1670×535×700 mm
Open Hole Size			1380*510MM

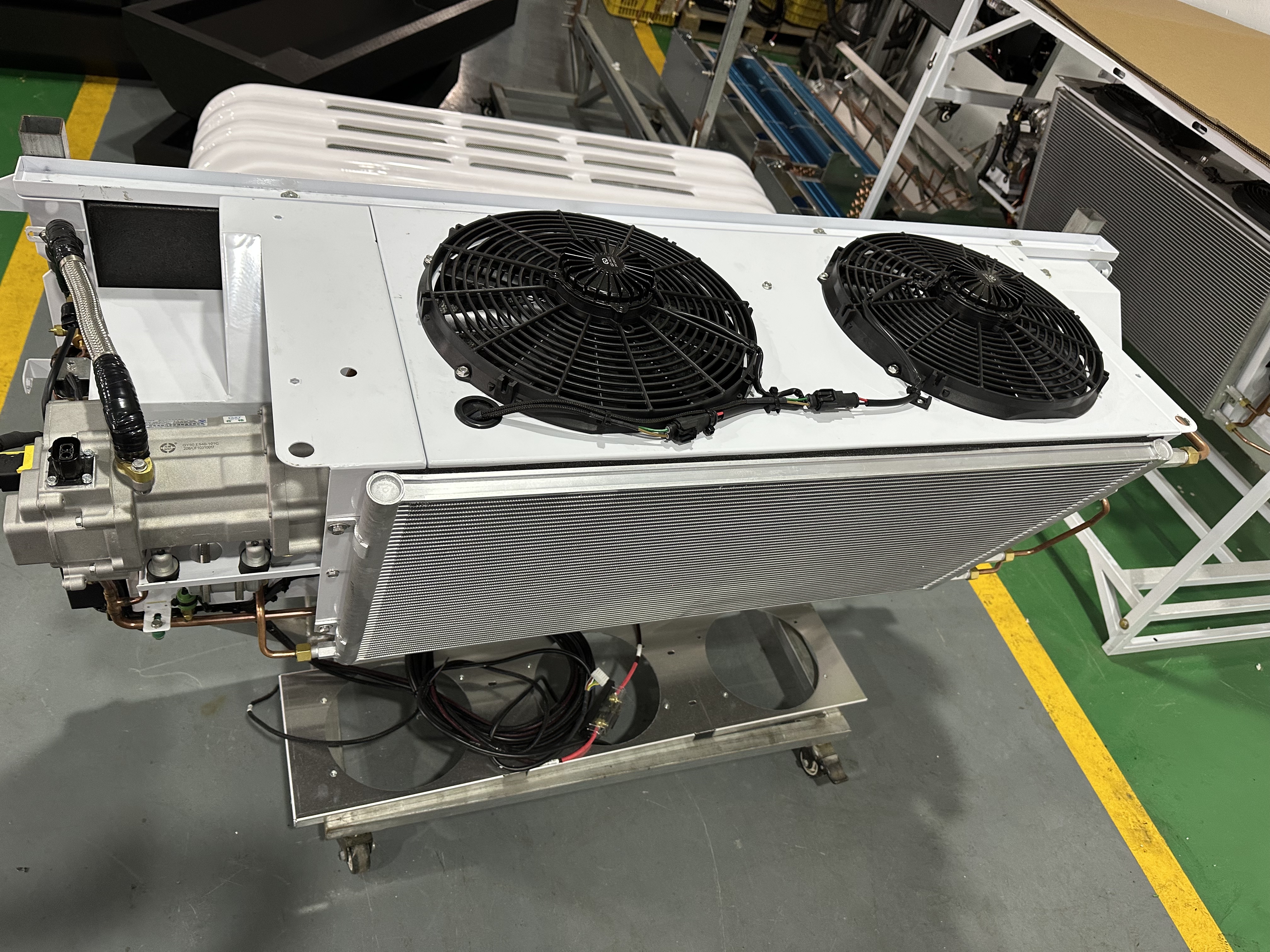

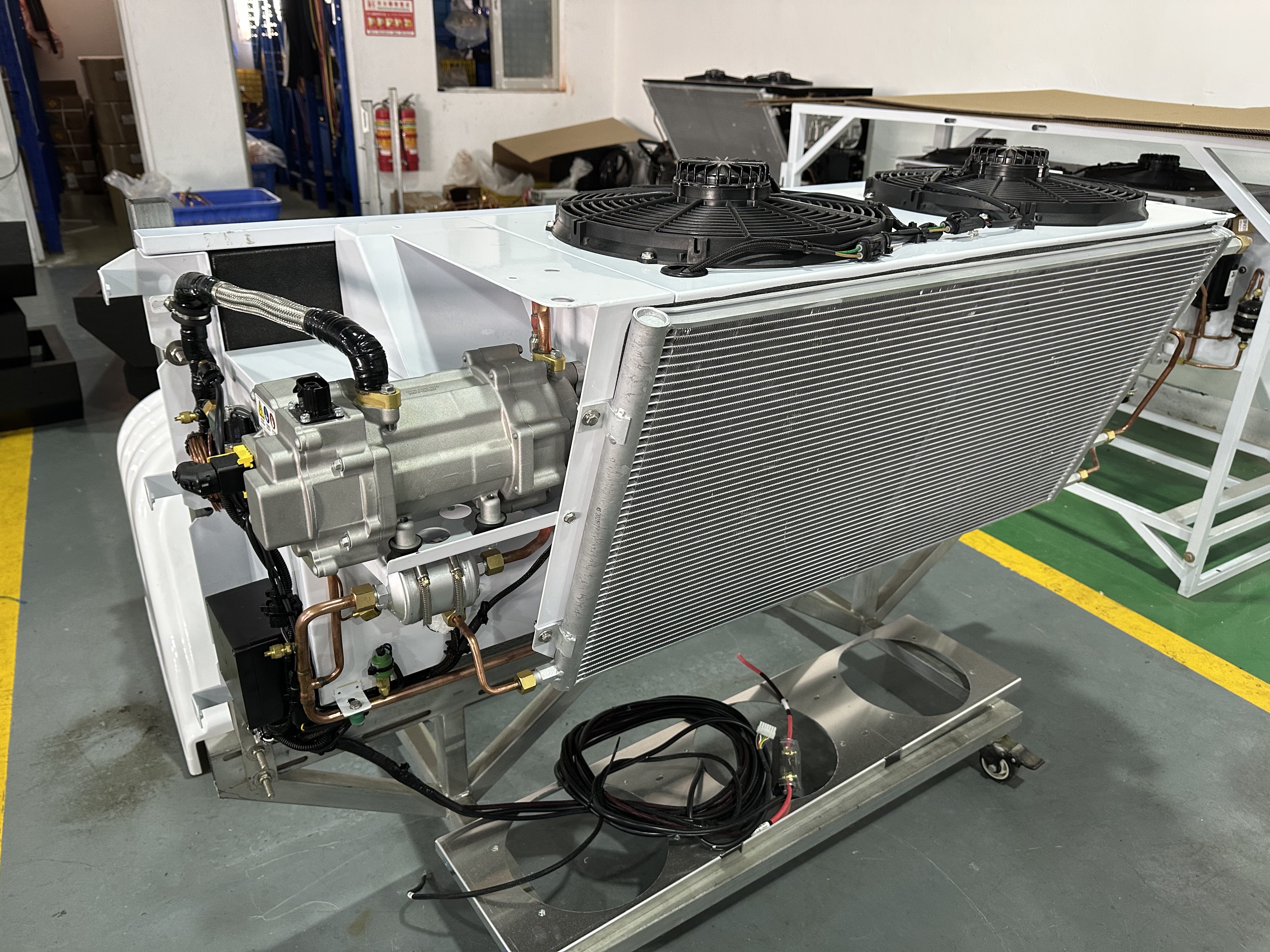

Application
